Power Tool Bearings

Bearings for Power Tools

Reliable bearing solutions for high-speed motors, gearboxes and output shafts in power tools.

Power tools operate under demanding conditions including high rotational speed, frequent start-stop cycles, vibration, impact loads and dust.

The bearings used inside the motor, gearbox and output system directly influence running stability, noise, temperature and service life.

LUMI supplies miniature and deep groove ball bearings for cordless drills, impact drivers, electric screwdrivers, angle grinders, sanders, circular saws and other power tool applications.

Typical ApplicationsCordless DrillsImpact DriversElectric ScrewdriversAngle GrindersSandersCircular Saws
Find Your Bearing Send Bearing Model / Drawing

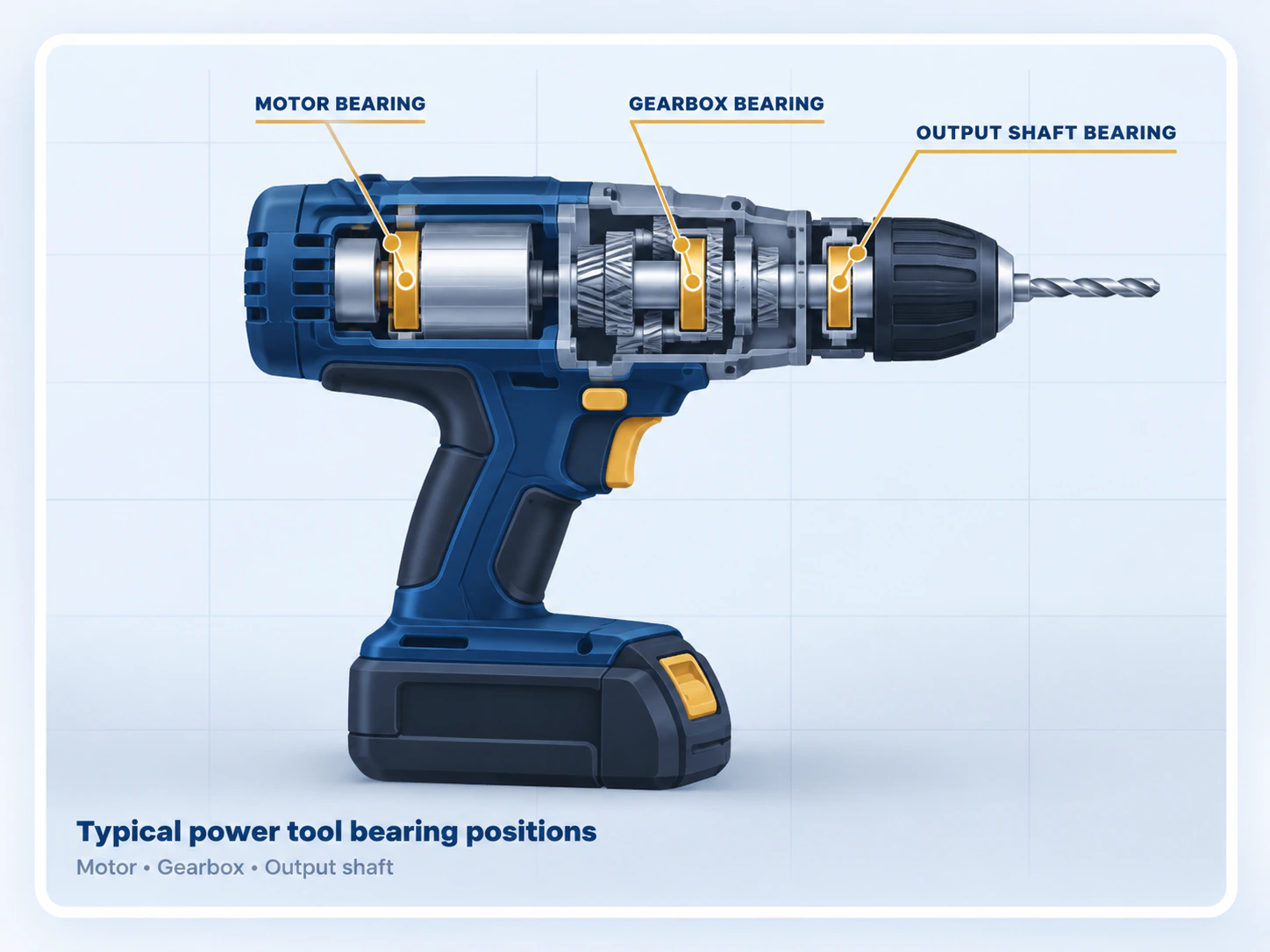

Typical power tool bearing positions in a cordless drill including motor bearing, gearbox bearing and output shaft bearing

Bearing positions

Where Bearings Are Used in Power Tools

A power tool usually contains several bearings in different operating positions. Although they may look similar, the requirements for each bearing position can be very different in terms of speed, load, vibration, sealing and lubrication.

01

Motor Bearings

Cutaway power tool motor showing the rotor shaft bearing

Motor bearings support the rotor shaft and help maintain stable rotation at high speed. For power tool motors, bearing vibration, internal clearance and lubrication can directly affect motor noise, temperature and running stability.

Main Requirements

  • High-speed stability
  • Low vibration
  • Low running noise
  • Consistent radial clearance
  • Controlled grease quantity
  • Stable running temperature
Typical Bearing Series625 · 626 · 627 · 608 · 609 · 6000 · 6001
Common OptionsZZ / 2RS / RSR · CN / C3 · Z2 / Z3 / Z4 · V2 / V3
02

Gearbox Bearings

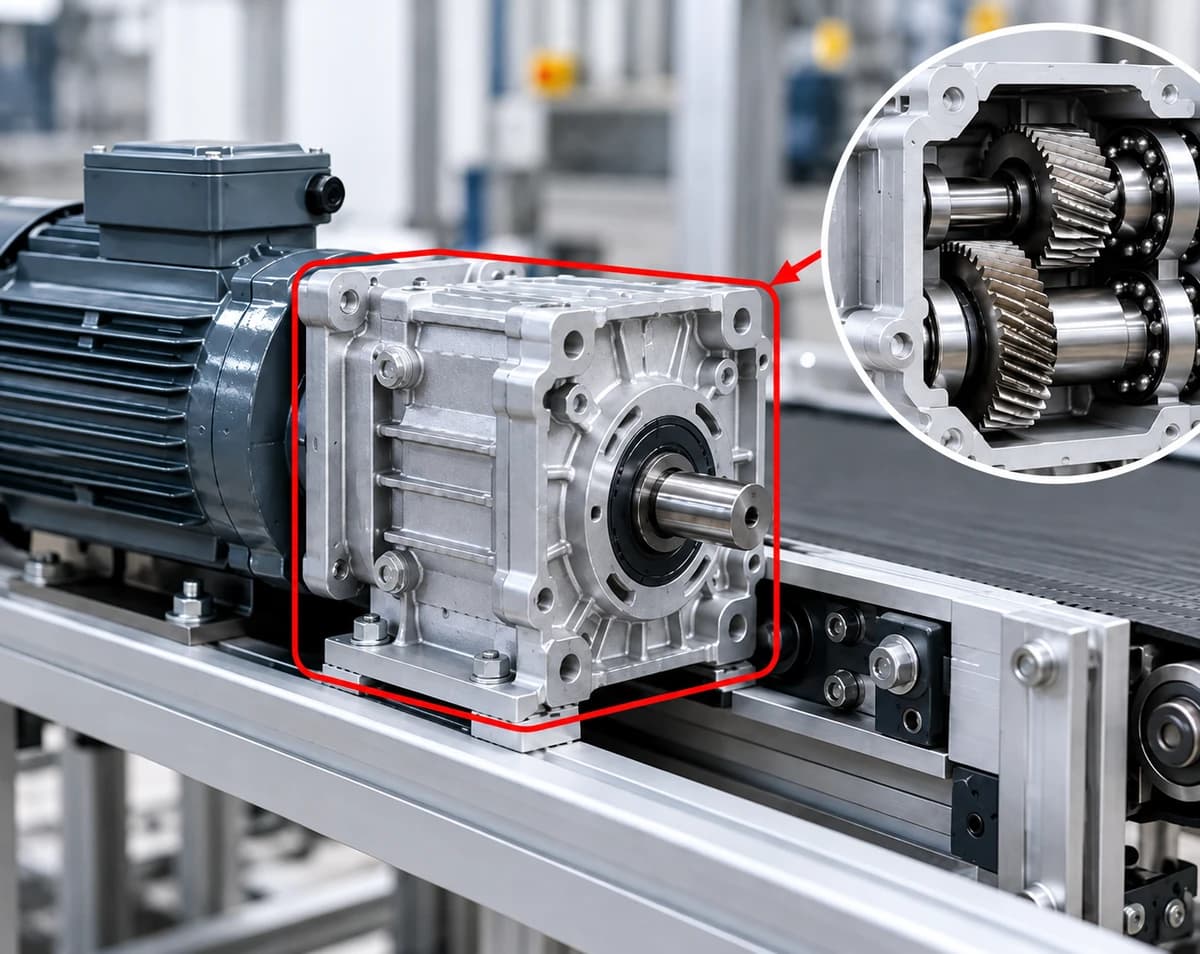

Gearbox assembly with an internal gear and bearing cutaway detail

Gearbox bearings support gears and transmission shafts while operating under speed variation, radial load and repeated torque changes. In cordless drills and impact tools, gearbox bearings also need to maintain stable positioning under frequent acceleration and deceleration.

Main Requirements

  • Stable radial load support
  • Dimensional consistency
  • Impact resistance
  • Reliable lubrication
  • Good wear resistance
  • Long service life
Typical Bearing Series6000 · 6001 · 6200 · 6201 · 6202

Compact gearbox designs may also use miniature ball bearings or needle bearings depending on the structure. Final bearing selection depends on shaft diameter, gearbox design, operating speed and load.

03

Output Shaft & Spindle Bearings

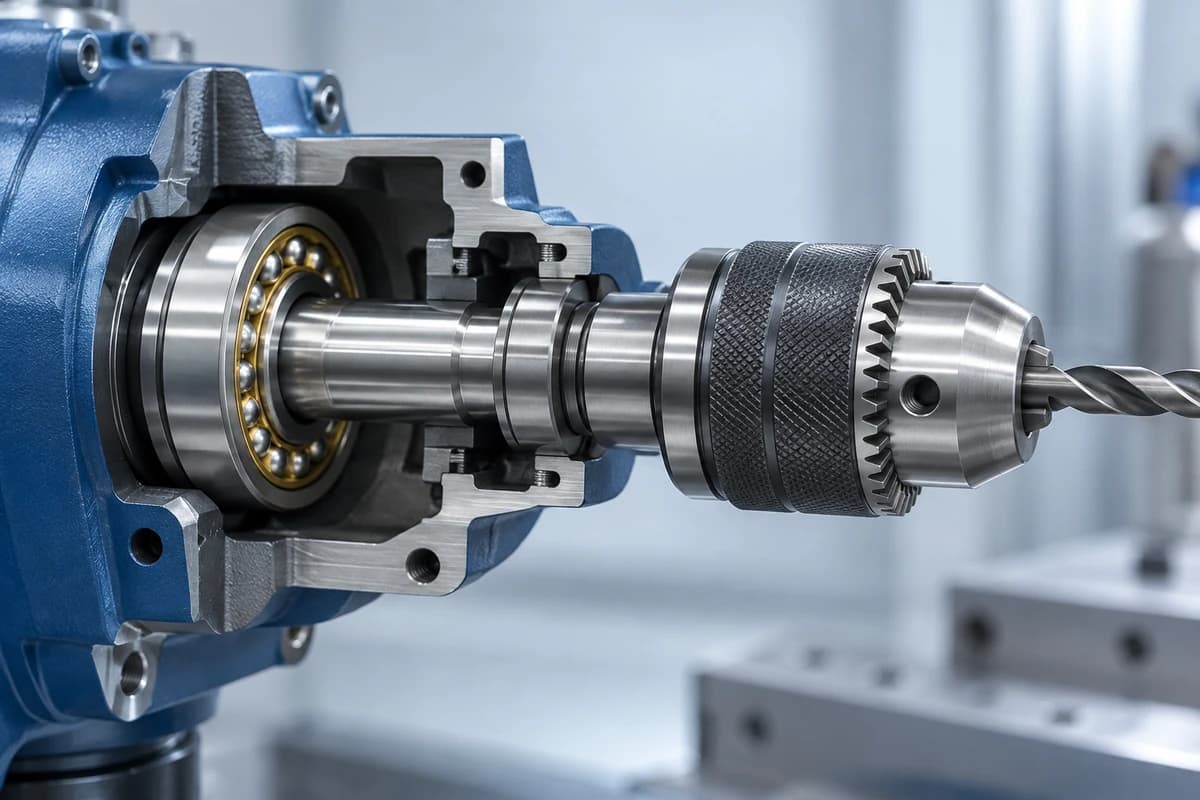

Power tool output spindle and drill chuck assembly with a visible bearing

The output shaft or spindle bearing supports the final rotating component connected to the drill bit, grinding wheel, saw blade or other working tool. This position often experiences higher external load and vibration.

Main Requirements

  • Higher rigidity
  • Stable shaft positioning
  • Radial load capacity
  • Impact resistance
  • Controlled internal clearance
  • Reliable sealing
Typical Bearing Series6000 · 6001 · 6200 · 6201 · 6202

Application conditions

Bearings by Power Tool Application

Different power tools create different operating conditions. The bearing should therefore be selected according to the actual motor speed, transmission structure, load and working environment.

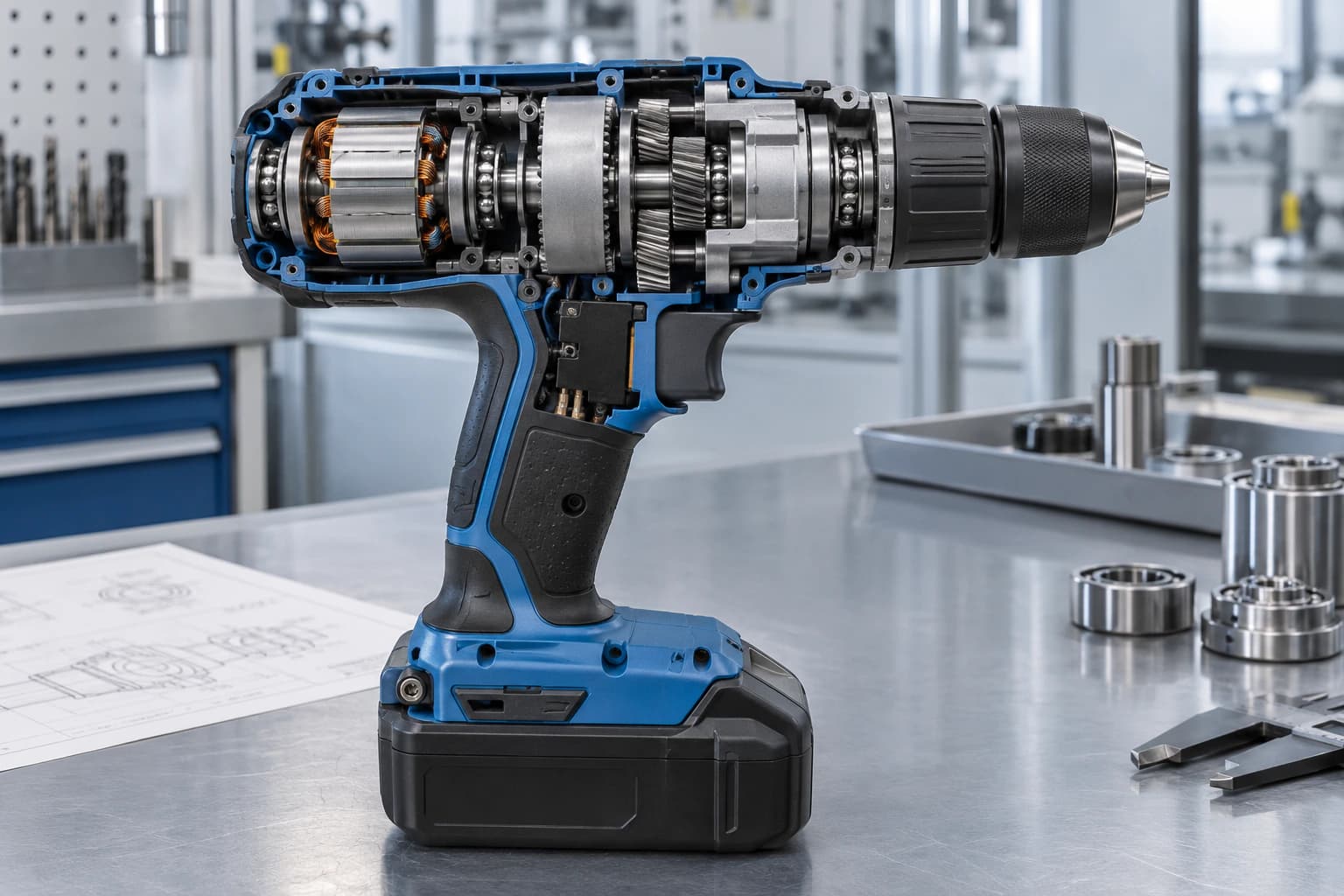

Cordless drill cutaway showing motor, gearbox and output spindle bearing positions

Cordless Drill Bearings

Cordless drills normally use bearings in three main positions: motor, gearbox and output spindle.

Typical Bearing Series608 · 609 · 626 · 627 · 6000 · 6001

Main Requirements

High speedFrequent start-stop operationLow vibrationStable gearbox supportReliable spindle positioning

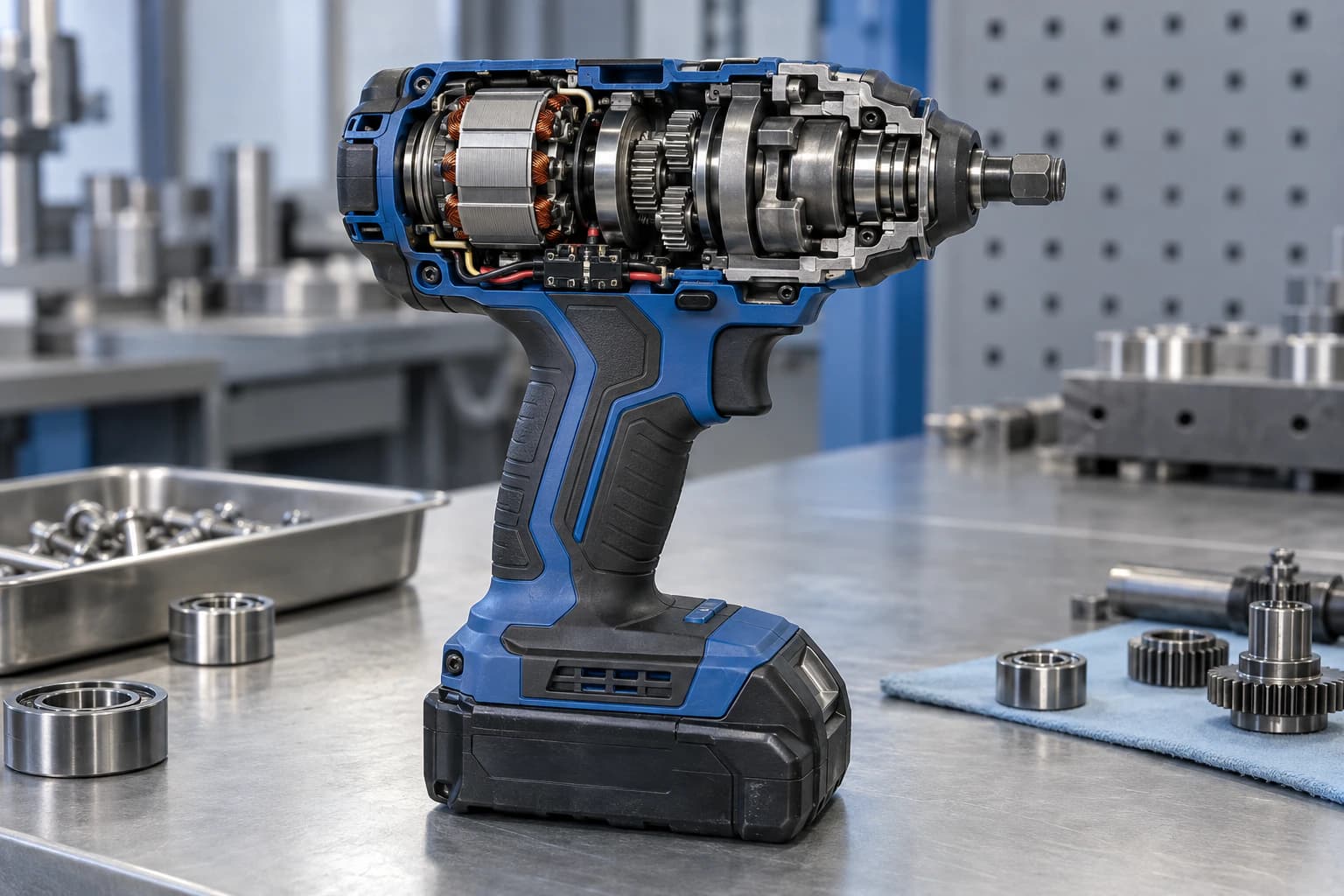

Impact driver cutaway showing motor bearings, impact mechanism and output support

Impact Driver Bearings

Impact drivers generate repeated torque changes and vibration during operation. Compared with conventional drills, bearing stability under impact and rapid load variation becomes more important.

Typical Bearing Series608 · 626 · 6000 · 6001 · 6200

Main Requirements

Impact resistanceVibration controlStable internal clearanceReliable lubricationLong service life

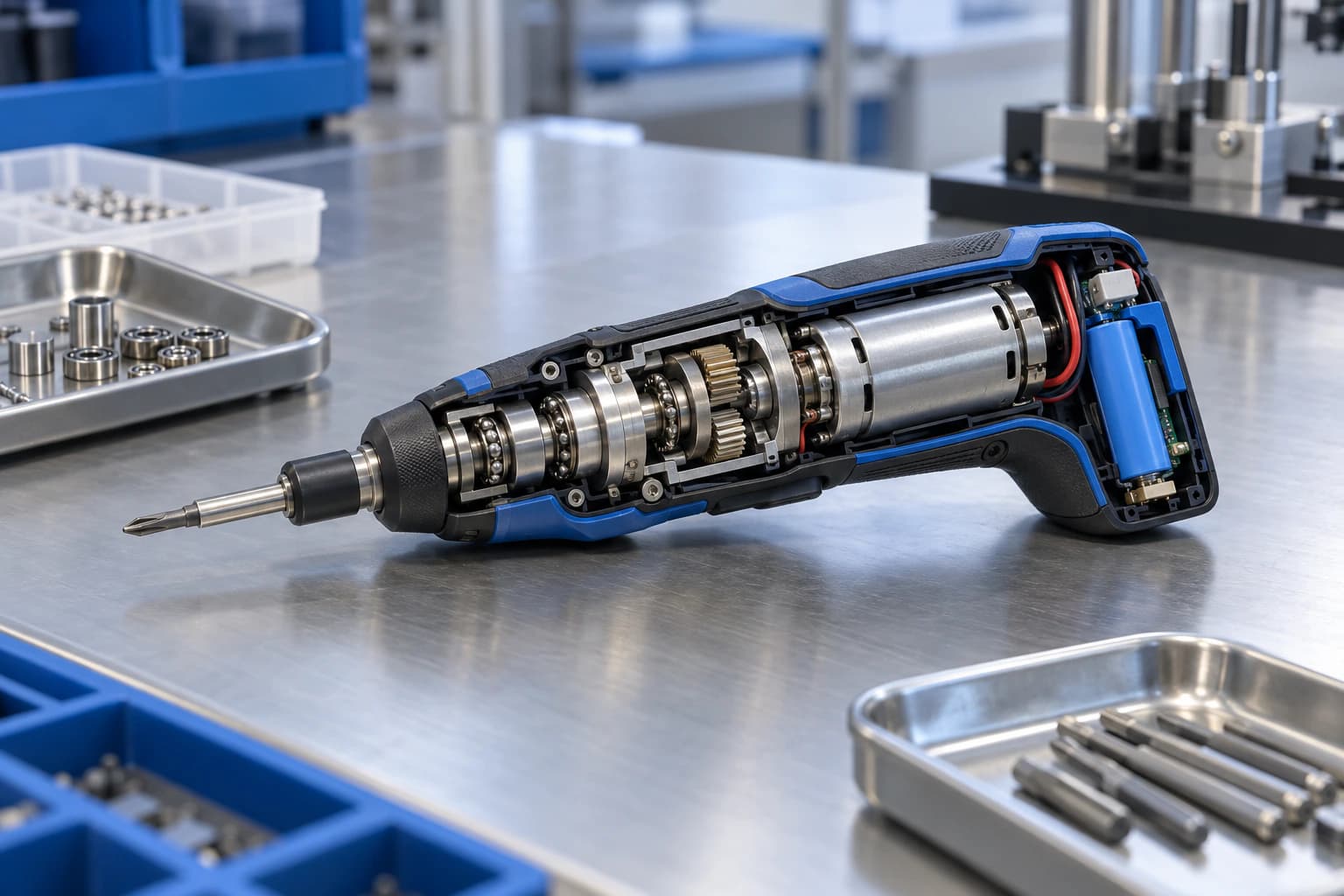

Compact electric screwdriver cutaway showing miniature motor and gearbox bearings

Electric Screwdriver Bearings

Compact electric screwdrivers normally use smaller bearings inside miniature motors and compact transmission systems. Low friction and low noise are often more important in this application.

Typical Bearing Series625 · 626 · 627 · 688 · Miniature Bearing Series

Main Requirements

Compact sizeLow frictionLow vibrationLow noiseSmooth rotation

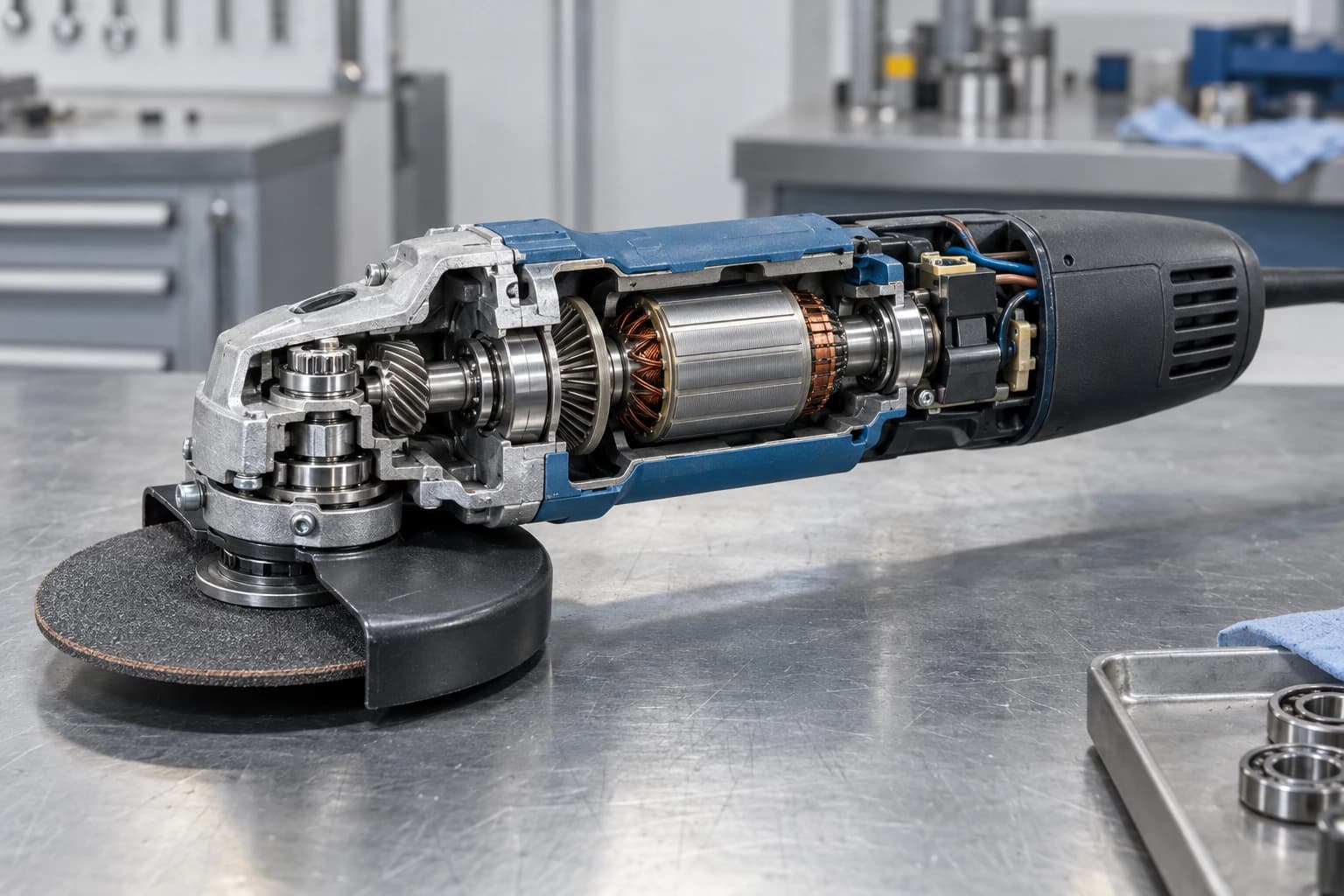

Angle grinder cutaway showing motor shaft, bevel gears and spindle bearings

Angle Grinder Bearings

Angle grinders usually operate at high speed and generate significant heat and radial load around the motor and spindle. Bearing stability becomes especially important during continuous grinding.

Typical Bearing Series608 · 6000 · 6001 · 6200 · 6201

Main Requirements

High-speed stabilityHeat controlRadial load supportVibration resistanceLubrication stability

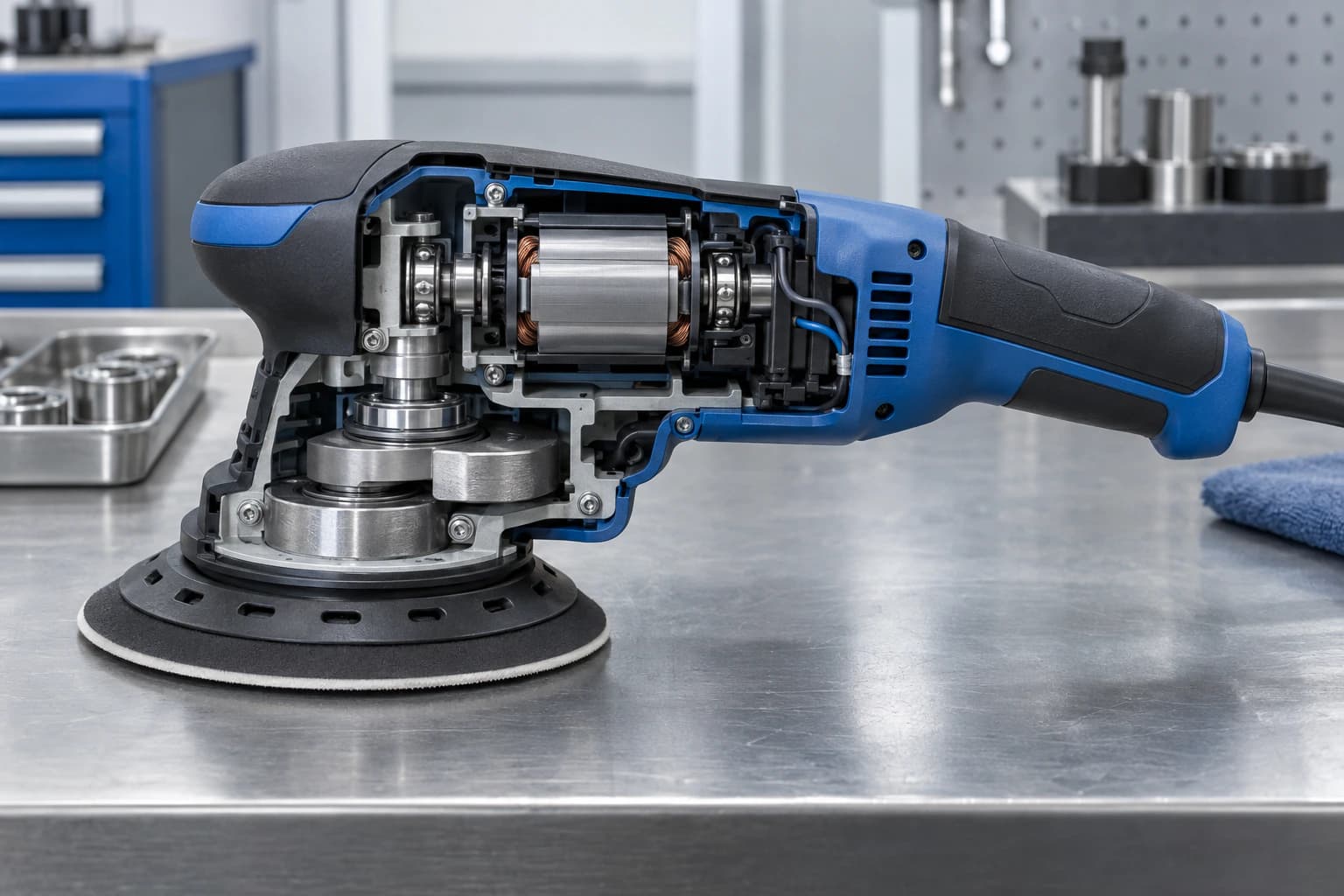

Sander and polisher cutaway showing motor, eccentric drive and output bearings

Sander & Polisher Bearings

Sanders and polishers operate with continuous rotation and vibration. The bearing needs to maintain smooth running while resisting repeated vibration from the working surface.

Typical Bearing Series608 · 6000 · 6001 · 6200

Main Requirements

Vibration resistanceSmooth rotationLow frictionStable lubricationLong operating life

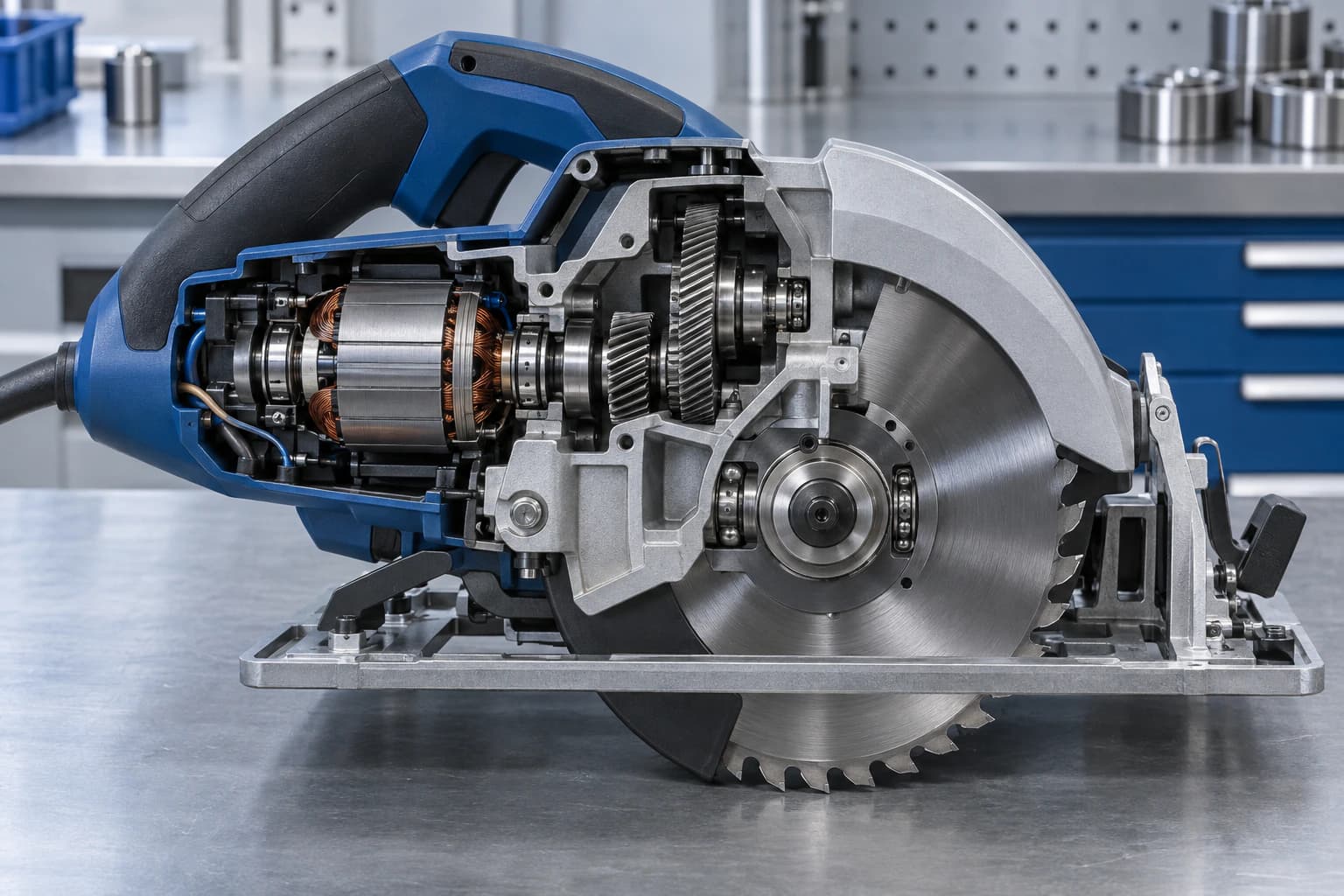

Circular saw cutaway showing motor, reduction gears and blade spindle bearings

Circular Saw Bearings

Circular saws require stable spindle support because the saw blade generates radial load, vibration and cutting resistance.

Typical Bearing Series6000 · 6001 · 6200 · 6201 · 6202

Main Requirements

Shaft rigidityRadial load capacityVibration resistanceStable positioningReliable lubrication

Selection reference

Typical Bearing Selection Guide

Power ToolBearing PositionTypical SeriesMain Requirement
Cordless DrillMotor608 / 609 / 626High speed, low vibration
Cordless DrillGearbox6000 / 6001Load & torque stability
Cordless DrillSpindle6000 / 6200Shaft stability
Impact DriverMotor608 / 626High-speed operation
Impact DriverGearbox6000 / 6200Impact resistance
Electric ScrewdriverMotor625 / 626 / 627Compact & low noise
Angle GrinderMotor608 / 6000High-speed stability
Angle GrinderSpindle6001 / 6201Radial load
Sander / PolisherMotor / Spindle608 / 6000Vibration resistance
Circular SawSpindle6200 / 6201 / 6202Rigidity & load

The models above are typical references only. Final bearing selection should be based on bearing dimensions, shaft and housing design, speed, load, operating temperature and working environment.

Engineering priorities

What Matters in Power Tool Bearings?

Bearing performance in power tools is determined by more than bearing size alone. Speed, vibration, clearance, lubrication and sealing all influence how the bearing performs inside the finished tool.

01

High-Speed Stability

Power tool motors can operate at high rotational speeds. The bearing must maintain stable rotation without excessive vibration or temperature rise.

02

Vibration Control

Bearing vibration can influence motor noise, rotor stability, gear engagement, tool vibration and overall operating feel. For applications with stricter motor requirements, vibration levels such as Z3 / Z4 can be considered.

03

Internal Clearance

Correct radial internal clearance is important for preventing overheating, unstable running and premature bearing failure. Available options include CN · C3 · C4. The correct clearance should be selected according to fit, speed, temperature and working conditions.

04

Lubrication

Grease type and grease quantity can significantly influence bearing temperature, running noise, starting torque, high-speed performance and bearing life. Different motor and gearbox positions may require different lubrication solutions.

05

Sealing

Different sealing structures can be selected according to operating conditions.

ZZ

Metal shields provide relatively low friction and are commonly used in high-speed motor applications.

2RS / RSR

Rubber seals provide stronger protection against dust and contamination.

06

Precision & Material

GCr15 Bearing Steel440C Stainless SteelABEC-5 / ABEC-7Z2 / Z3 / Z4V2 / V3CN / C3 / C4ZZ / 2RS / RSR

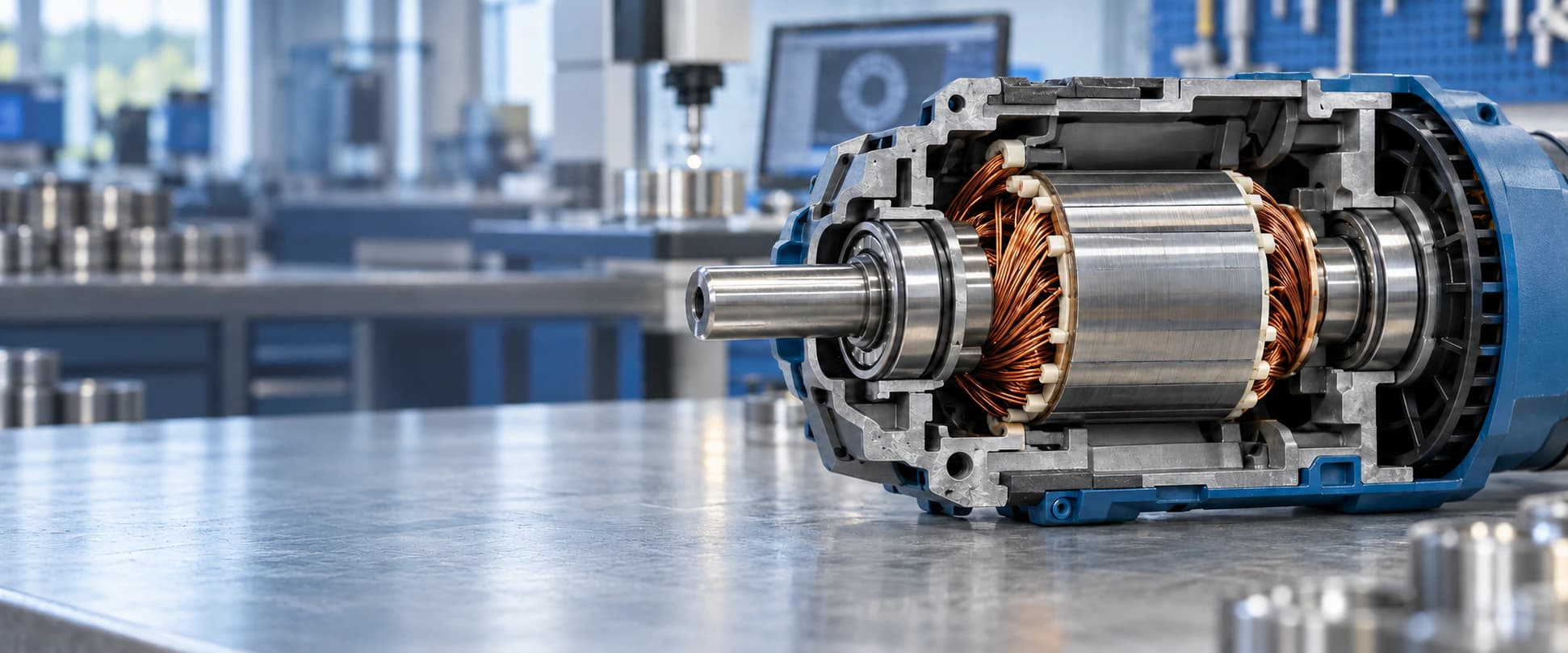

Cutaway power tool motor showing installed shaft bearings

Why Motor Bearings Matter

Bearings for Power Tool Motors

The electric motor is one of the most critical bearing applications inside a power tool.

Even when two bearings have the same dimensions, differences in vibration, clearance, lubrication and manufacturing consistency can result in different motor performance.

Bearing quality can influence

Motor noiseRotor stabilityRunning temperatureVibrationCurrent consumptionMotor service life

Miniature Bearings

625 · 626 · 627 · 628 · 688 Series

Suitable for compact motors and electric screwdrivers.

View Miniature Bearings

Small Deep Groove Ball Bearings

608 · 609 · 6000 · 6001 Series

Commonly used in drills, grinders, saws and other power tool motors.

View Deep Groove Bearings

Configuration options

Available Bearing Specifications

Precision

ABEC-5 / ABEC-7P6 / P5

Vibration & Noise

Z2 / Z3 / Z4V2 / V3

Clearance

CN / C3 / C4

Material

GCr15 Bearing Steel440C Stainless Steel

Sealing

ZZ2RSRSR

Lubrication

Standard GreaseHigh-Speed GreaseHigh-Temperature GreaseLight Oil

Production control

From Sample Testing to Mass Production

For power tool manufacturers, bearing approval normally starts with motor or complete-tool testing.

LUMI can prepare samples according to the required bearing specification before mass production.

After the bearing specification is confirmed, the same key parameters can be controlled for mass production.

Typical evaluation may include

NoiseVibrationRotationTemperatureMotor running performanceGearbox performanceComplete-tool testing

Project input

How to Select the Right Bearing

Already Know the Bearing Model?

Simply send us the bearing model and required quantity.

Example608ZZ · 626ZZ · 6000ZZ · 6201-2RS
Send Bearing Model

Developing a New Power Tool?

If you are developing a new motor or power tool, please provide:

  • Bearing dimensions
  • Shaft diameter
  • Motor speed / RPM
  • Bearing position
  • Radial or axial load if available
  • Operating temperature
  • Seal requirement
  • Noise / vibration requirement
  • Current bearing brand
  • Estimated annual quantity

A bearing drawing, existing sample or application photo can also help us evaluate the requirement.

Discuss Your Application

FAQ

Frequently Asked Questions

What bearings are commonly used in cordless drills?+

Cordless drills commonly use miniature and deep groove ball bearings in the motor, gearbox and output spindle. Typical sizes may include 608, 609, 626, 6000 and 6001 series, depending on the tool design.

Should power tool bearings use ZZ or 2RS?+

It depends on the bearing position and working environment. ZZ bearings generally provide lower friction, while rubber-sealed bearings offer stronger protection against dust and contamination.

What precision level is suitable for power tool motors?+

The required precision depends on motor speed and performance requirements. For motors with higher requirements for vibration and running stability, ABEC-5 together with controlled vibration levels such as Z3 or Z4 may be considered.

Can you supply samples for testing?+

Yes. Samples can be prepared for motor, gearbox and complete-tool testing before mass production.

Power tool projects

Looking for Bearings for Your Power Tool Project?

Send us your bearing model, drawing or current bearing sample.

Bearing SizePrecisionNoise & VibrationInternal ClearanceLubricationSeal Type
