Small Electric Motor Bearings
Low-noise bearing support for compact motors requiring low friction, stable shaft rotation and reliable long-term operation.
Bearings inside a small electric motor directly influence noise, vibration, operating temperature, starting current and service life.
Even when dimensions are identical, differences in internal clearance, vibration grade, lubricant and manufacturing consistency can change the finished motor's performance.
LUMI supplies miniature and small deep groove ball bearings for compact motor architectures and consistent OEM production.
Bearing positions
Small motors use bearings in distinct positions around the rotor and, where fitted, the reduction gearbox. Each position has different requirements for load, friction, noise, clearance and lubrication.

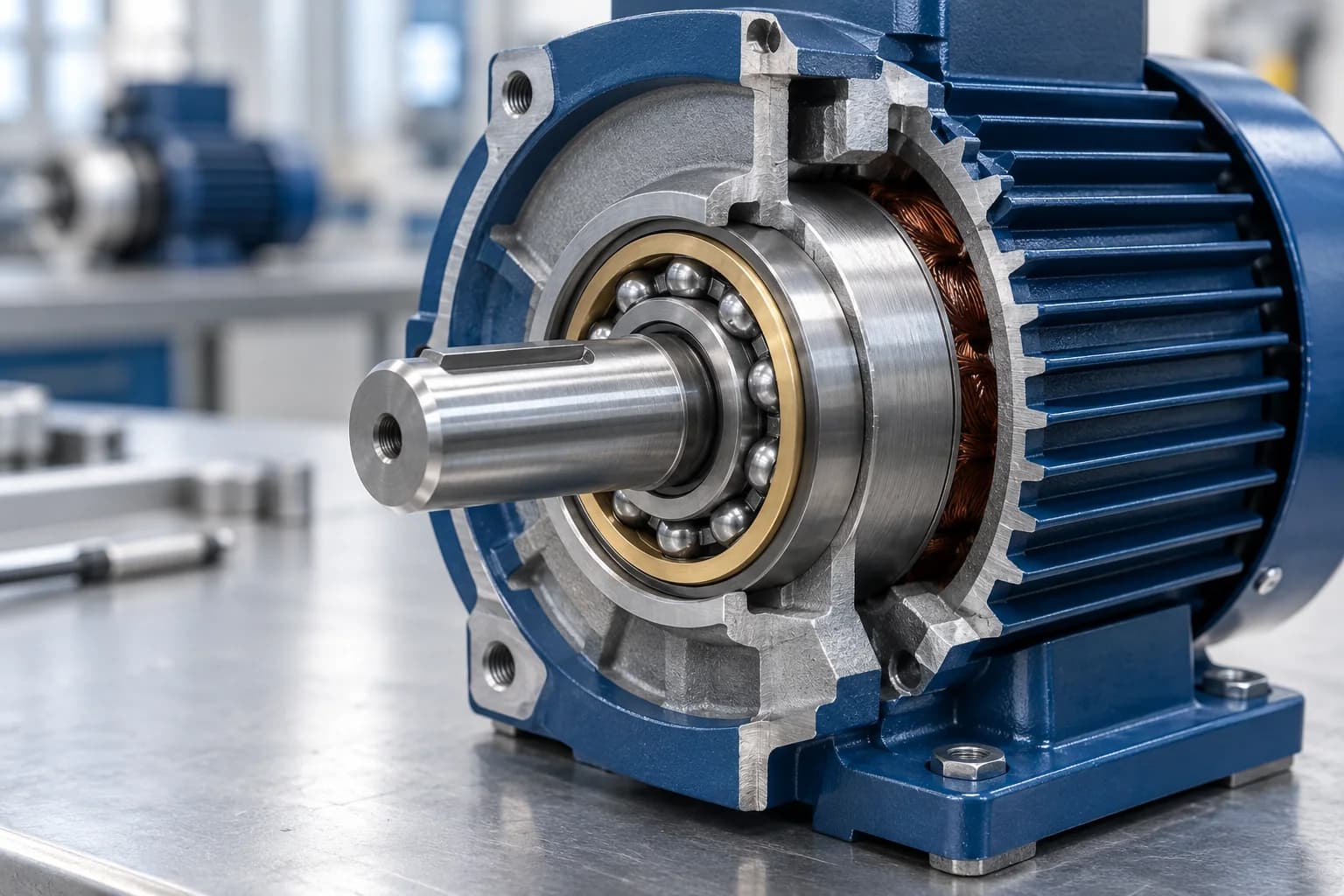

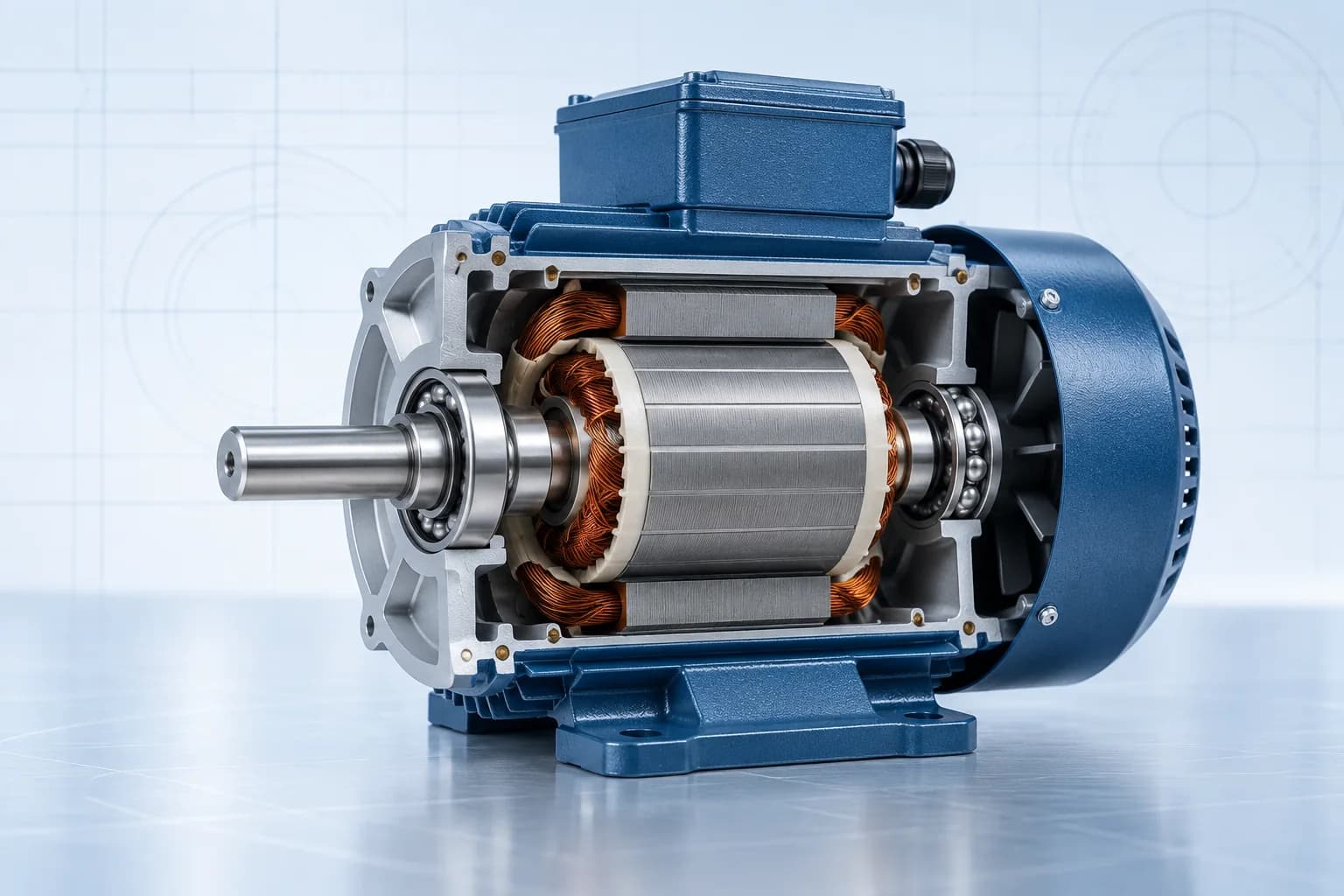

The drive-end bearing supports the loaded or output end of the rotor shaft. It carries the main radial load and directly influences shaft location, vibration and stable power transmission.

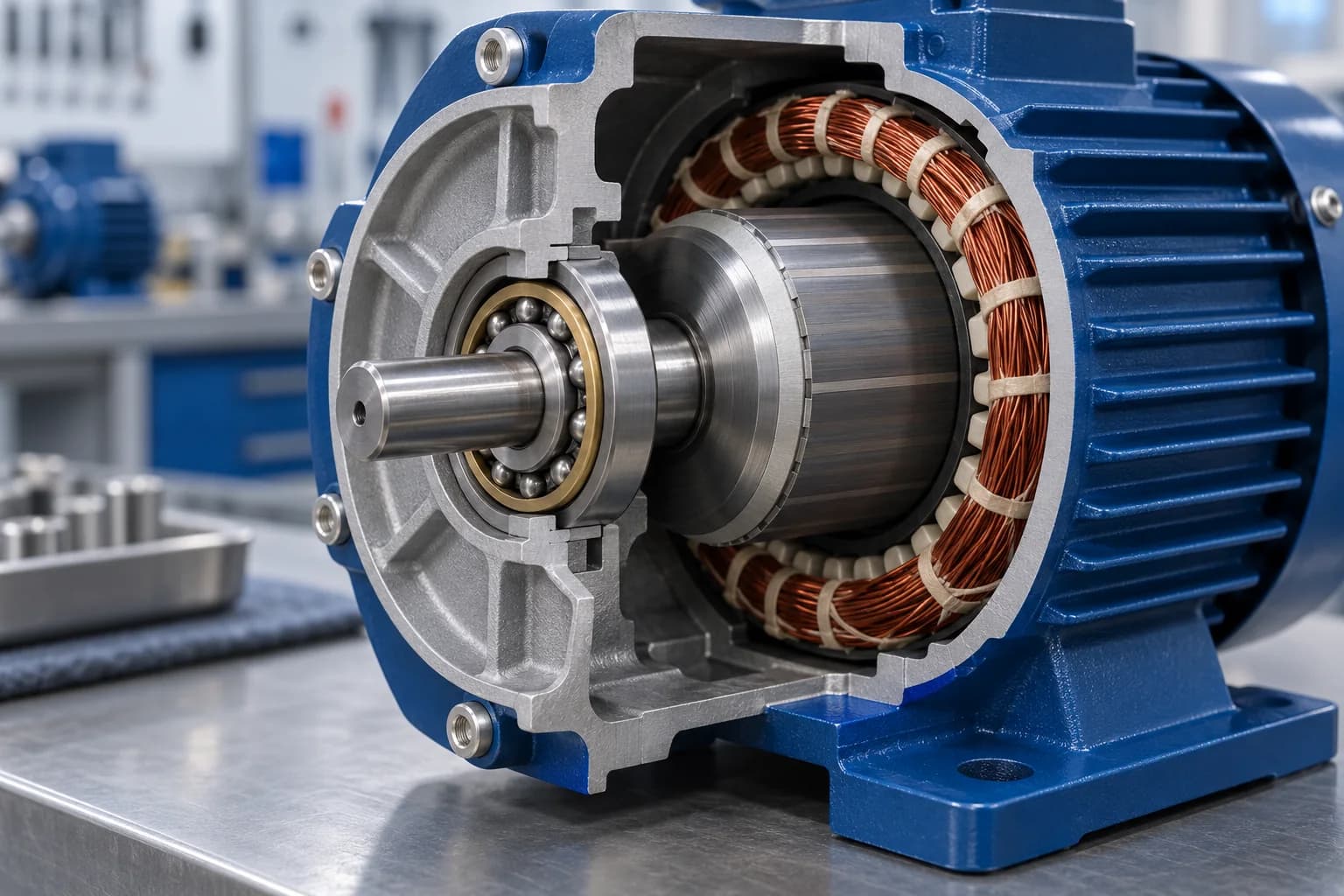

The non-drive-end bearing supports the opposite end of the rotor and helps maintain a stable air gap between rotor and stator. Low friction and consistent vibration performance support quiet, efficient rotation.

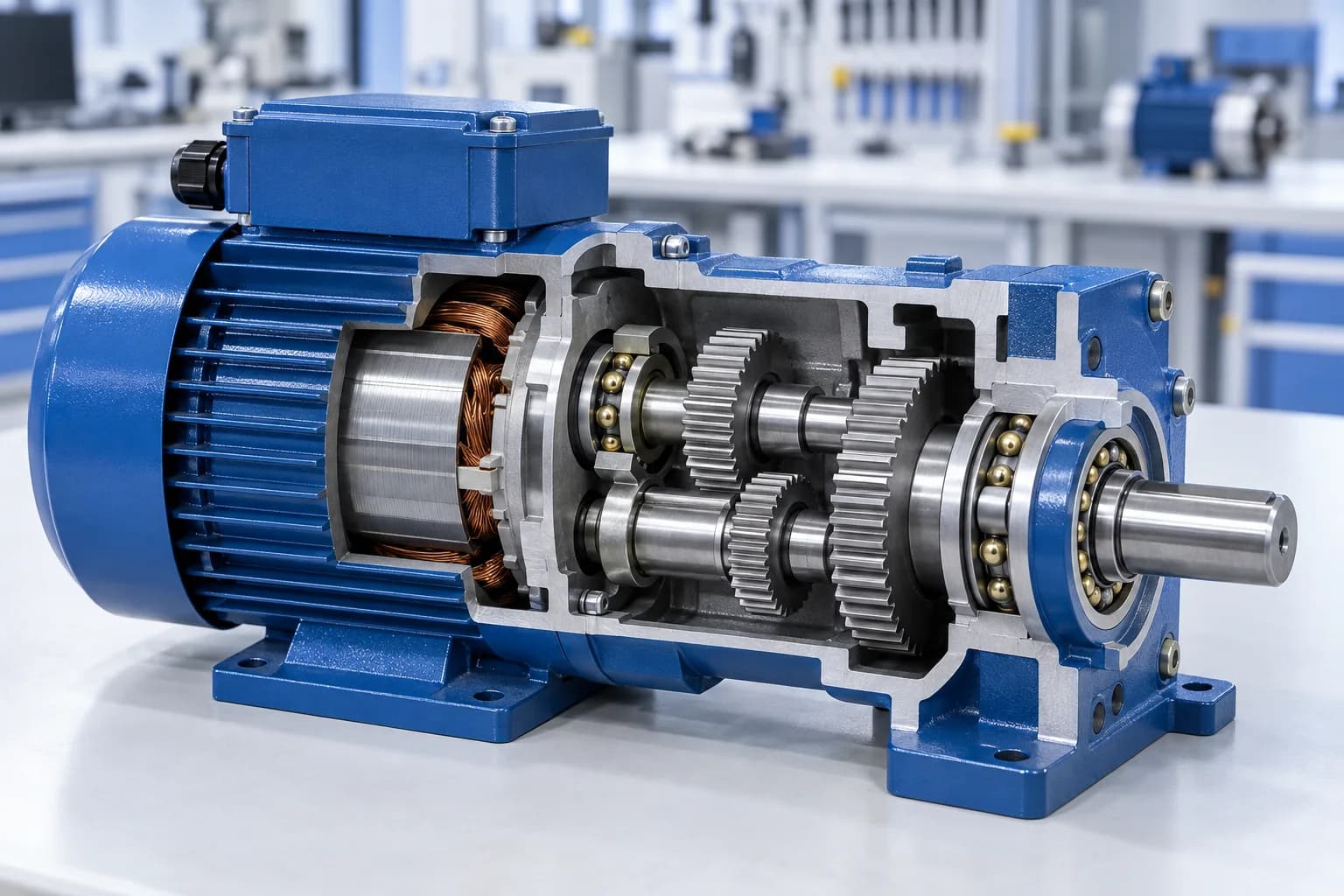

In compact gearmotors, gearbox and output bearings support gear shafts and the final output shaft under changing speed, radial load and torque. Correct positioning helps maintain gear engagement and output stability.
Final selection depends on shaft diameter, reduction structure, operating speed, torque, mounting fit and target service life.
Application conditions
The bearing configuration should follow the motor's speed, shaft support, noise target, operating cycle, environment and transmission structure.

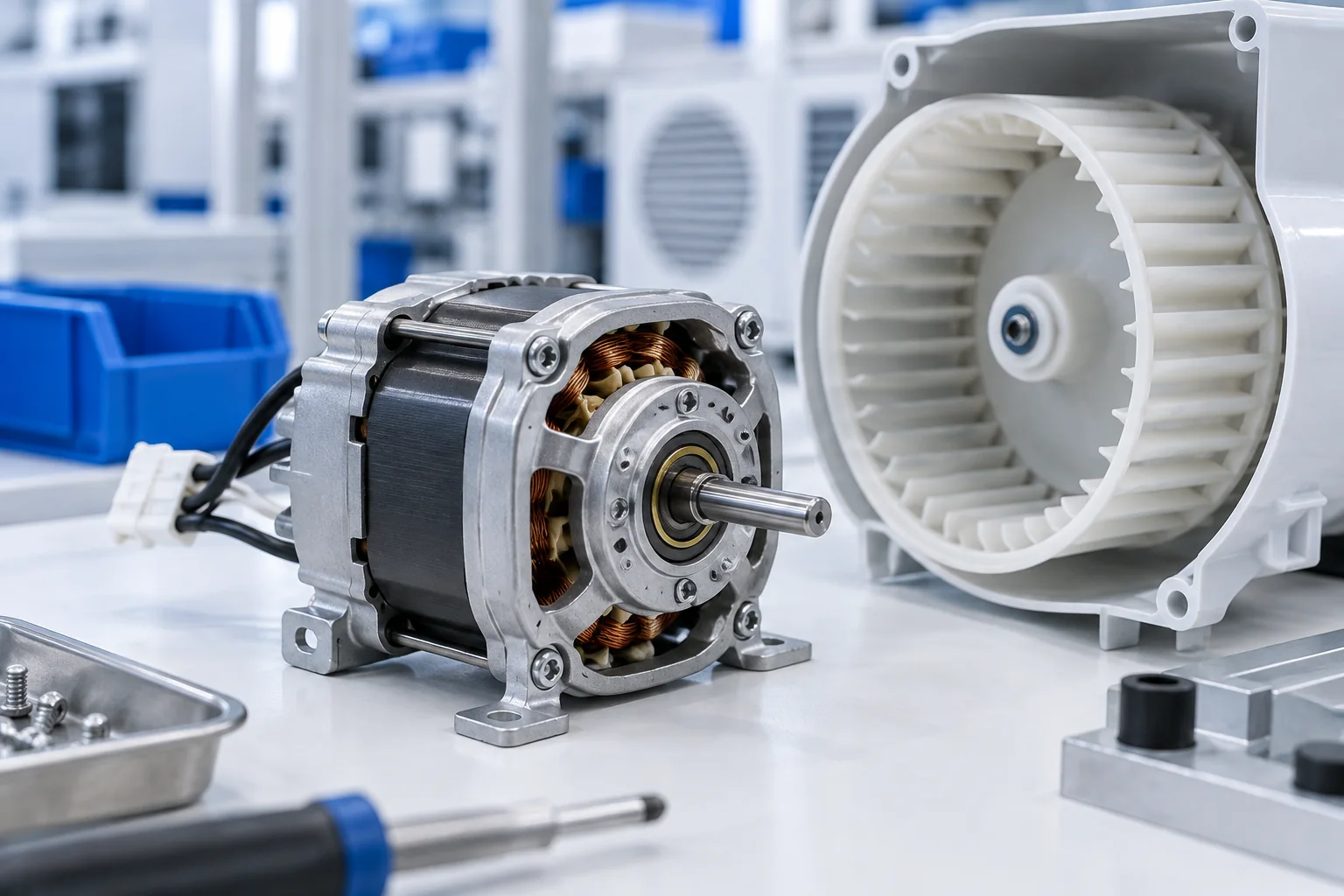

Compact motors in household appliances need quiet, stable bearing support over long and repeated operating cycles.

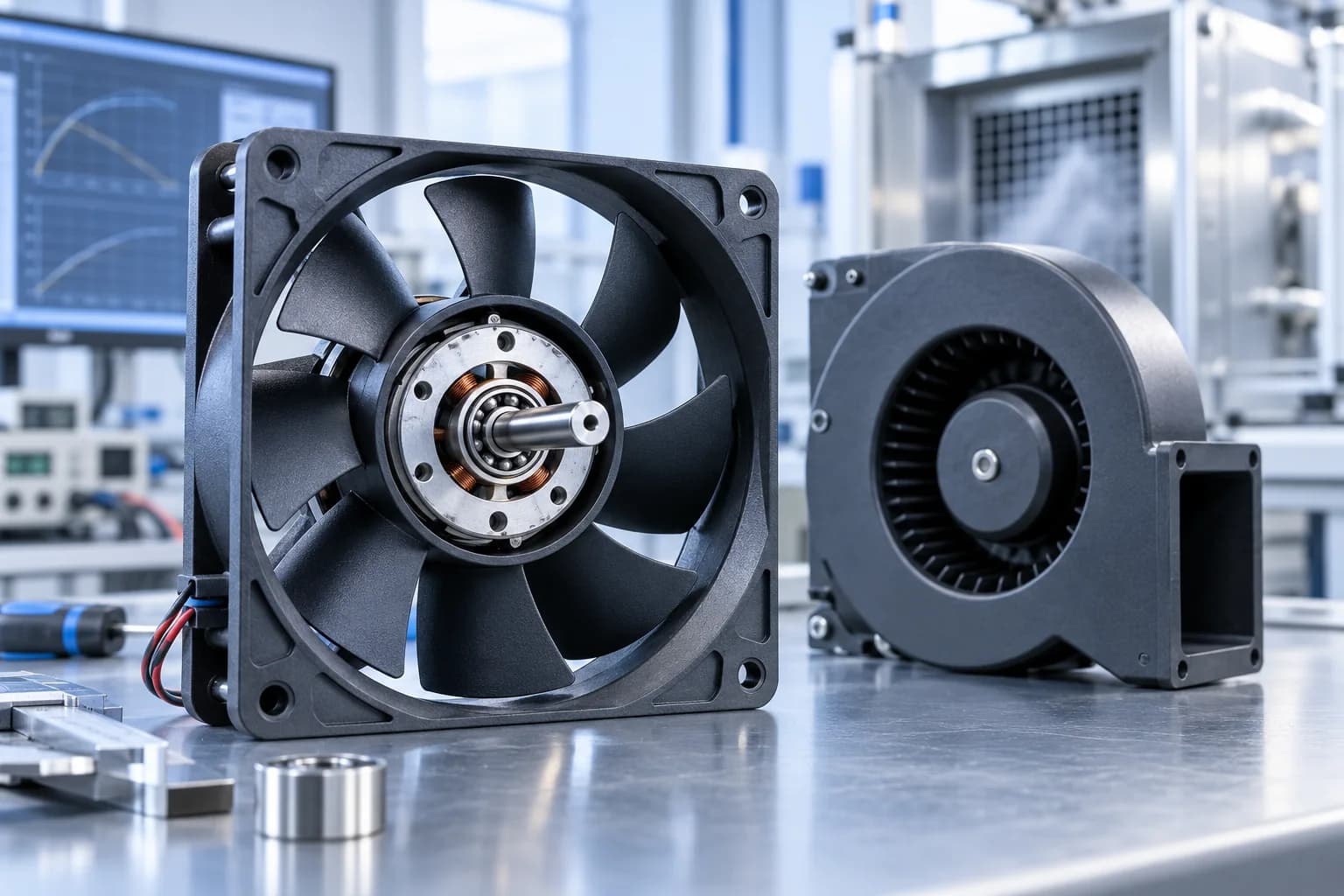

Fan and blower motors rely on low-friction bearings to maintain smooth high-speed rotation with limited vibration and noise.

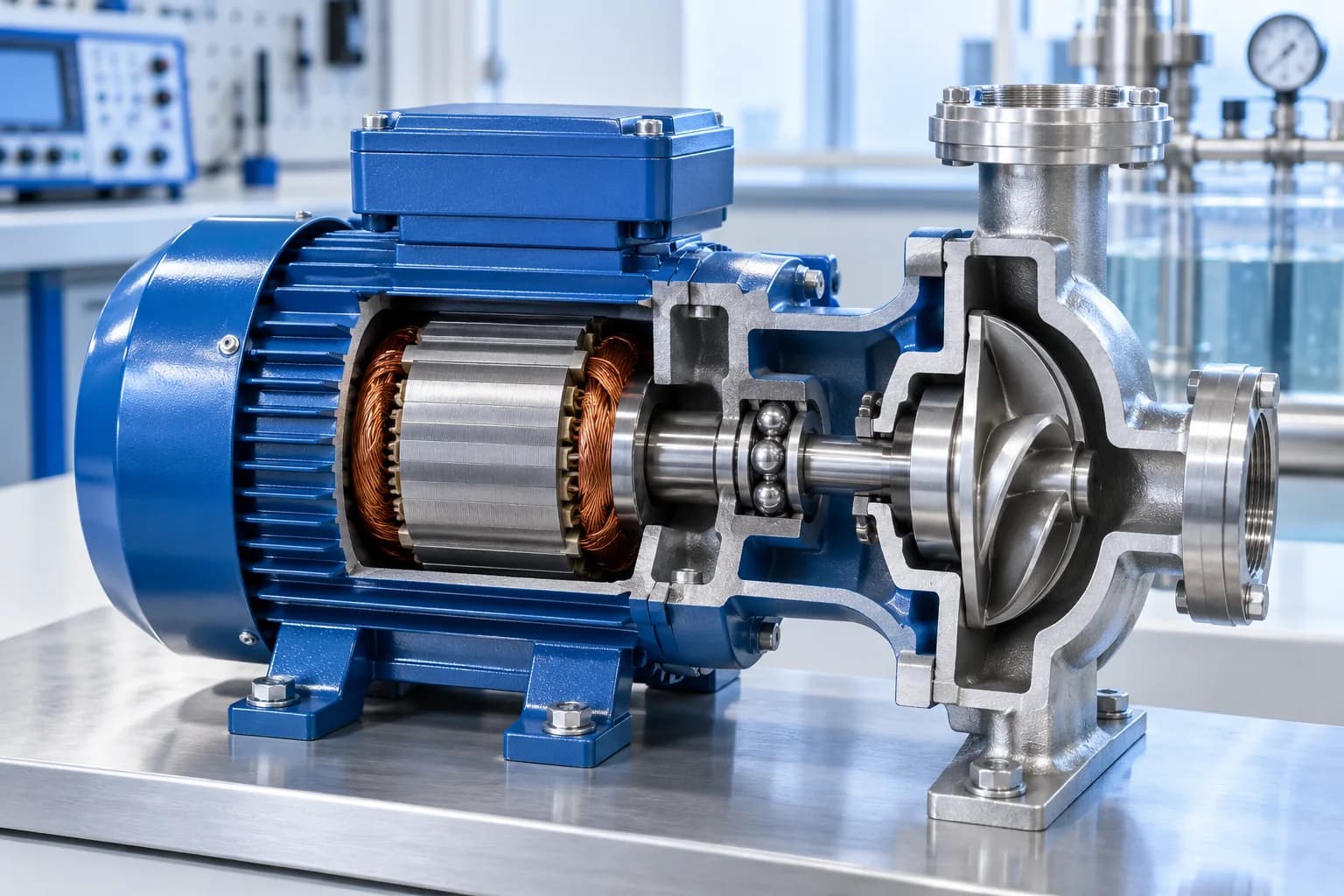

Small pump motors require stable shaft support, controlled temperature and sealing selected for the actual operating environment.

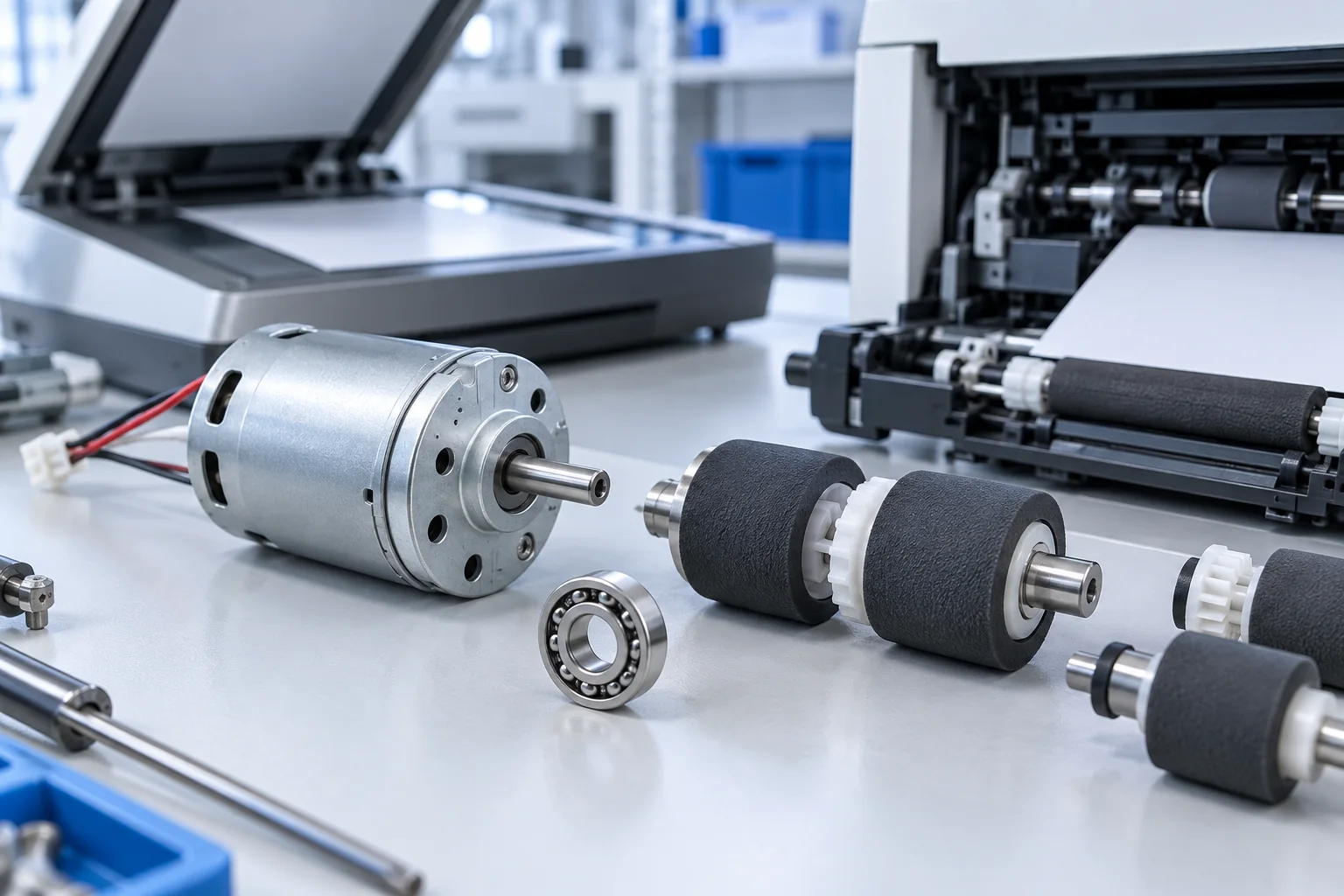

Printer, scanner and document-handling motors need compact bearings with low starting torque and precise, quiet rotation.

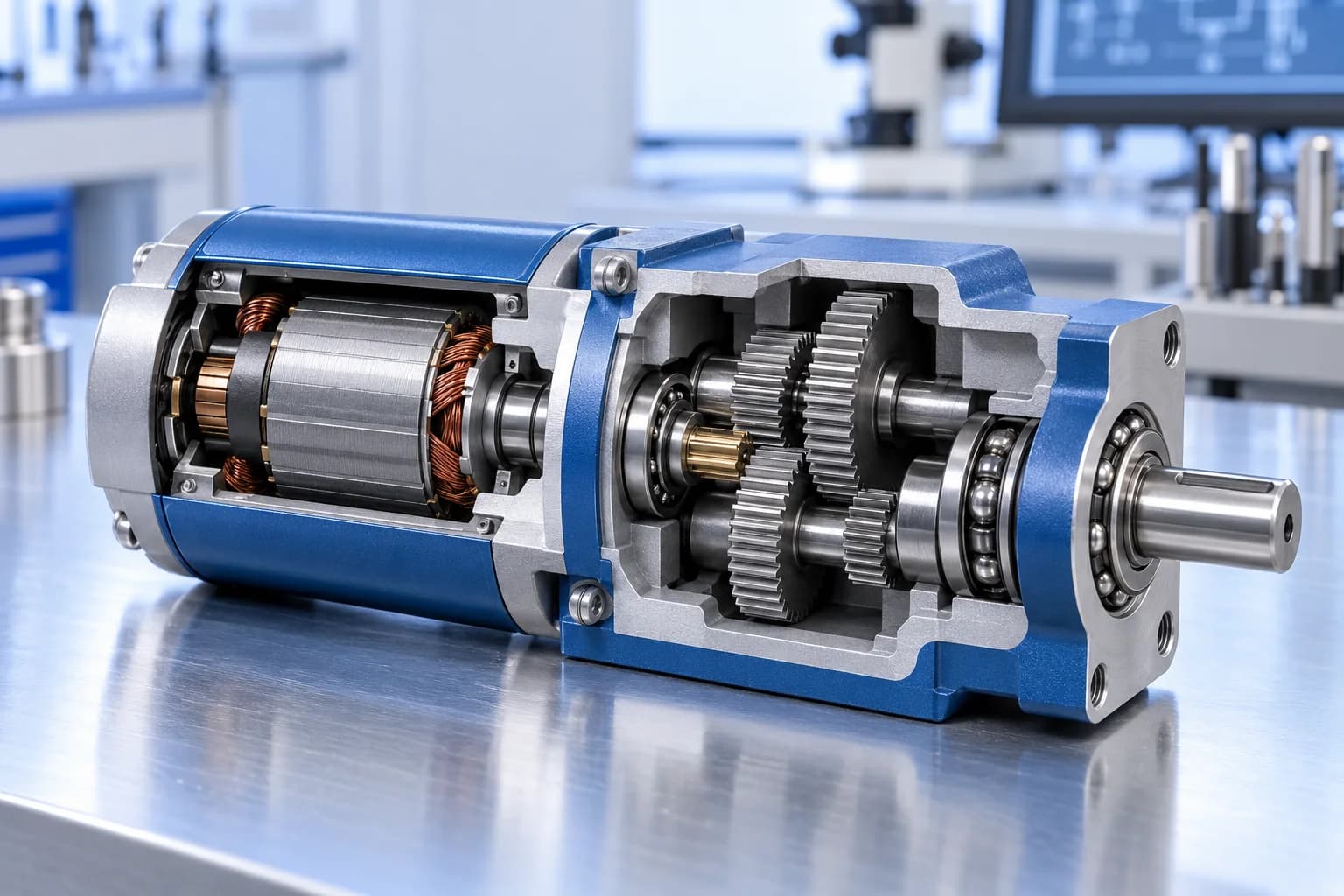

Compact gearmotors combine motor bearings, gear-shaft support and output bearings in a space-limited transmission assembly.

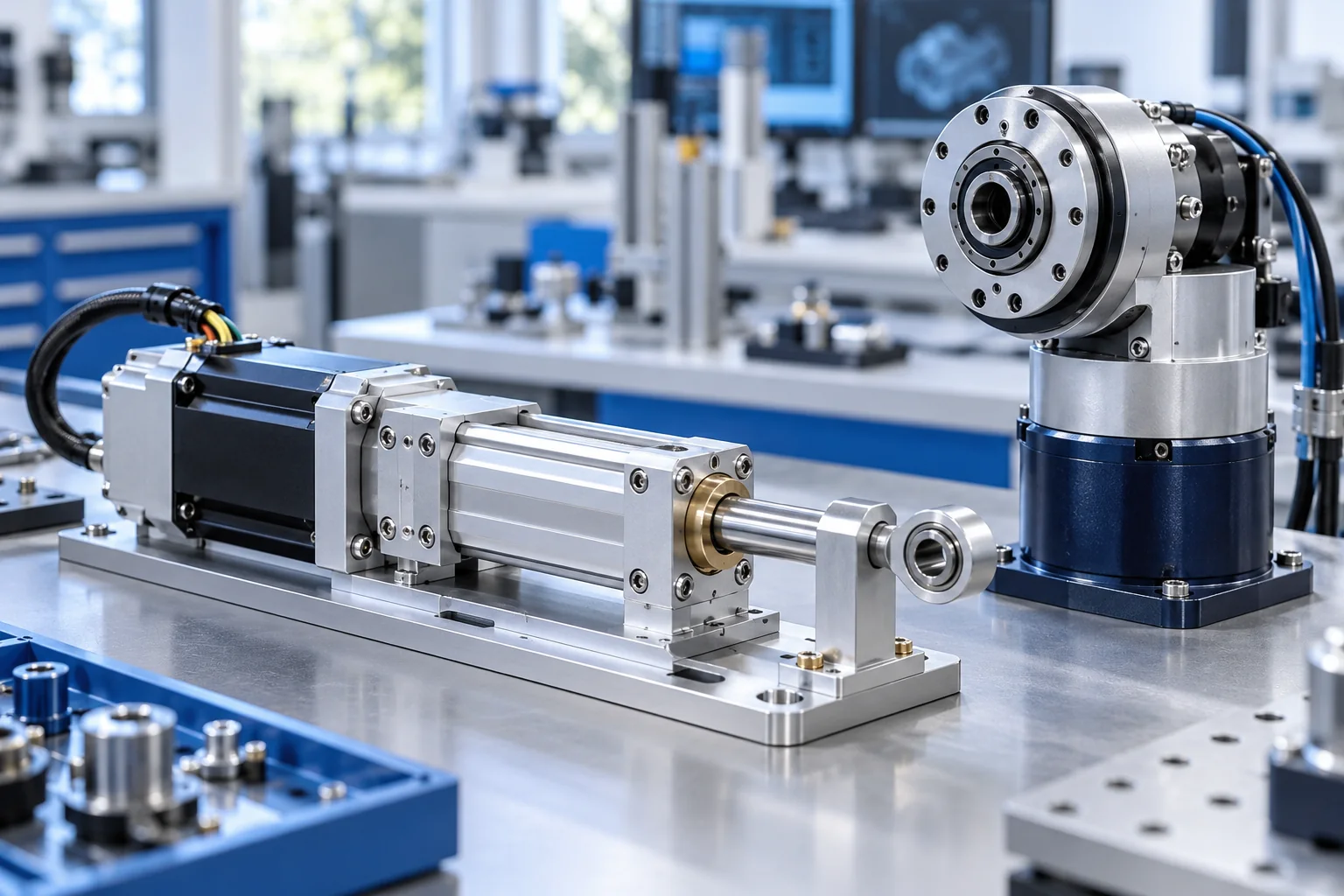

Small actuators and robotic drives require compact bearing arrangements that remain consistent through repeated starts, stops and positioning cycles.
Selection reference
| Motor Application | Bearing Position | Typical Series | Main Requirement |
|---|---|---|---|
| Home Appliance Motor | Drive End | 608 / 609 / 6000 | Low noise, stable running |
| Home Appliance Motor | Non-Drive End | 625 / 626 / 627 | Low friction |
| Cooling Fan Motor | Rotor Support | 625 / 626 / 608 | Low vibration, high speed |
| Small Pump Motor | Shaft Support | 608 / 609 / 6000 | Temperature & sealing |
| Office Automation Motor | Rotor Support | 625 / 626 / 688 | Low starting torque |
| Compact Gearmotor | Gearbox | 6000 / 6001 / 6200 | Gear-shaft stability |
| Compact Gearmotor | Output Shaft | 6001 / 6200 | Radial load support |
| Small Actuator Motor | Motor Shaft | 625 / 626 / 608 | Positioning consistency |
The models above are typical references only. Final bearing selection should be based on shaft diameter, mounting fit, speed, load, temperature, noise target and operating environment.
Engineering priorities
Small-motor performance depends on the complete bearing configuration, including vibration, friction, internal clearance, lubrication, sealing, precision and material.
Bearing vibration and running noise directly affect the perceived quality of home appliances, cooling fans and office equipment. Consistent raceway finish and controlled vibration grade help support quiet operation.
Friction influences starting current, efficiency and low-speed response. Bearing closure, lubricant and preload conditions should be reviewed together for compact motor designs.
CN or C3 clearance may be selected according to shaft and housing fit, speed and operating temperature. Incorrect clearance can increase noise, heat or unstable rotation.
Grease type and fill quantity affect starting torque, noise, temperature and life. Standard, high-speed and high-temperature grease or light oil can be considered by duty.
Closure selection balances friction with environmental protection.
Metal shields provide relatively low friction for clean motor interiors and higher-speed operation.
Rubber seals provide stronger protection where dust or moisture is a concern.
Why Small Motor Bearings Matter
Bearings influence motor noise, rotor stability, running temperature, starting current and service life.
In compact motors, small differences in clearance, vibration and lubrication can change the finished motor's performance.
Suitable for compact motors, fans, office equipment and small actuators.
View Miniature BearingsCommonly used in appliance motors, pumps, blowers and compact gearmotors.
View Deep Groove BearingsConfiguration options
Production control
For small electric motor OEMs, bearing approval normally starts with sample, motor and application-level testing.
LUMI can prepare samples according to the required bearing specification before mass production.
After the bearing specification is confirmed, the same key parameters can be controlled for mass production.Project input
Send us the bearing model and required quantity.
Please provide:
A motor drawing, existing bearing sample or application photo can also help us evaluate the requirement.
Discuss Your ApplicationFAQ
Small electric motors commonly use miniature and small deep groove ball bearings such as 625, 626, 627, 608, 609, 6000 and 6001 series. The final model depends on shaft size, speed, load and motor architecture.
ZZ shields generally offer lower friction for clean motor interiors. 2RS or RSR seals provide stronger contamination protection. The choice should follow speed, starting torque, dust and moisture conditions.
Bearing vibration contributes directly to motor noise, while internal clearance affects shaft stability, friction and temperature. The correct combination depends on fits, speed and the motor's noise target.
Yes. LUMI can prepare samples to the requested bearing specification for noise, vibration, starting and complete-motor validation before mass production.
