Compact radial section
For the same listed bore, the 6000 series uses a smaller outside diameter than the corresponding 6200 and 6300 series in this catalogue.
Standard Deep Groove Ball Bearings · 6000 Series
6000 Series Deep Groove Ball Bearings
The 6000 Series provides the smallest section of the three standard series listed here for a given bore, supporting compact motor and equipment layouts.
Search the current LUMI catalogue records from 6000ZZ through 6009ZZ by model or d × D × B.
Final selection must still account for load, speed, shaft and housing fits, internal clearance, lubrication and the operating environment.
10–45 mm bore26–75 mm outer diameter8–16 mm width
Representative models shown- Models
- 10
- Bore
- 10–45 mm
- Outer diameter
- 26–75 mm
- Width
- 8–16 mm
Selection table
Find a Bearing by Model or Dimensions
Model-level dimensions and catalogue ratings from the LUMI selection catalogue.
10 of 10 models
★ Marked as regular-use in the LUMI catalogue| Model | Request | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| ★6000ZZ | 10 | 26 | 8 | 8 | 4160 | 1780 | 29 | 34 | Request This Model |
| ★6001ZZ | 12 | 28 | 8 | 8 | 5110 | 2380 | 26 | 30 | Request This Model |
| ★6002ZZ | 15 | 32 | 9 | 9 | 5590 | 2840 | 22 | 26 | Request This Model |
| ★6003ZZ | 17 | 35 | 10 | 10 | 6000 | 3250 | 20 | 24 | Request This Model |
| ★6004ZZ | 20 | 42 | 12 | 12 | 9390 | 5020 | 18 | 21 | Request This Model |
| 6005ZZ | 25 | 47 | 12 | 12 | 10060 | 5860 | 15 | 18 | Request This Model |
| 6006ZZ | 30 | 55 | 13 | 13 | 11900 | 7460 | 13 | 15 | Request This Model |
| 6007ZZ | 35 | 62 | 14 | 14 | 16210 | 10420 | 12 | 14 | Request This Model |
| 6008ZZ | 40 | 68 | 15 | 15 | 17030 | 11700 | 10 | 12 | Request This Model |
| 6009ZZ | 45 | 75 | 16 | 16 | 21080 | 14780 | 9 | 11 | Request This Model |
Open and ZZ widths are listed separately where applicable. Limiting speeds are catalogue values in ×1000 rpm; suitable application speed depends on the final bearing configuration and operating conditions.
Need a drawing or additional parameter confirmation? Technical files are supplied through direct project communication.
Request Technical InformationProduct Overview
The 6000 Series uses a compact section for space-conscious equipment design. It is a practical starting point when shaft size is fixed and the available housing diameter or width is limited.
Space-conscious motor layouts
The compact geometry suits motors, appliance drives and mechanisms where adjacent components restrict the bearing envelope.
Direct model comparison
Use the table to compare dimensions, Cr, C0r and limiting speeds across the listed 6000 Series models.
Selection notes
Check that the compact section still meets the application load, speed, fit, clearance, lubrication and environmental requirements.
Closure Options
Open Bearing
Lowest closure frictionAn open bearing leaves the raceway accessible and is commonly considered where the surrounding assembly provides protection.
- Lowest sealing friction
- Convenient lubrication access
- Suited to clean, protected environments
Typical applicationsProtected motor housings · Clean mechanisms · Lubrication-accessible assemblies
ZZ / Metal Shields
Low-friction grease retentionNon-contact metal shields help retain grease and reduce entry of larger dust particles while maintaining low running friction.
- Non-contact metal shielding
- Low running friction
- Helps retain grease
Typical applicationsMotors · Fans · Gearboxes · General industrial equipment
RS / 2RS Rubber Seals
Stronger environmental protectionRubber seals provide stronger protection against dust and moisture and generally retain grease more effectively than Open or ZZ designs.
- Stronger dust and moisture protection
- Better grease retention
- Normally higher sealing friction
Typical applicationsContamination-exposed equipment · Appliance drives · Industrial mechanisms
| Configuration | Protection | Grease retention | Relative closure drag | Typical selection priority |
|---|---|---|---|---|
| Open Bearing | Provided mainly by the surrounding assembly | Depends on the lubrication system | Lowest | Clean operation and lubrication access |
| ZZ / Metal Shields | Moderate protection from larger particles | Good | Low | General-purpose protected running |
| RS / 2RS Rubber Seals | Highest of the three options | Highest | Higher | Contamination and moisture control |
Exact closure availability should be confirmed by model and application requirements. Applicable speed for RS / 2RS designs should be checked for the selected seal configuration.
Materials & Configuration
Material availability is confirmed by model. Select the material system around corrosion exposure, load, wear, speed, operating environment and project cost.
Bearing Steel
GCr15 / AISI 52100A common material system for motors, gearboxes and general industrial applications where corrosion resistance is not the primary requirement.
- High hardness
- Good wear resistance
- Good rolling fatigue performance
304 Stainless Steel
Austenitic stainless steelStrong corrosion resistance for humid or corrosion-sensitive environments; mechanical and load requirements must be considered for the application.
- Strong corrosion resistance
- Useful in humid environments
- Requires load and mechanical review
420 Stainless Steel
Martensitic stainless steelA balance of hardness, wear resistance and corrosion resistance for bearing applications that also require mechanical strength.
- Balanced hardness and corrosion resistance
- Good wear resistance
- Mechanical-strength focused
440 Stainless Steel
High-hardness stainless steelHigher hardness and wear resistance for precision stainless bearing applications requiring stronger bearing performance.
- Higher hardness
- Higher wear resistance
- Precision stainless applications
How to choose
Material Selection
Compare the complete operating requirement rather than selecting from corrosion resistance or hardness alone.
- Corrosion resistance
- Load
- Wear resistance
- Speed
- Operating environment
- Cost
Available models6000ZZ–6009ZZ as individually listed
Engineering inputsLoad · Speed · Fit · Clearance · Lubrication · Environment
Applications
Compact Motors
Smaller-section support where motor envelope, shaft size and running conditions must be balanced.
Application details

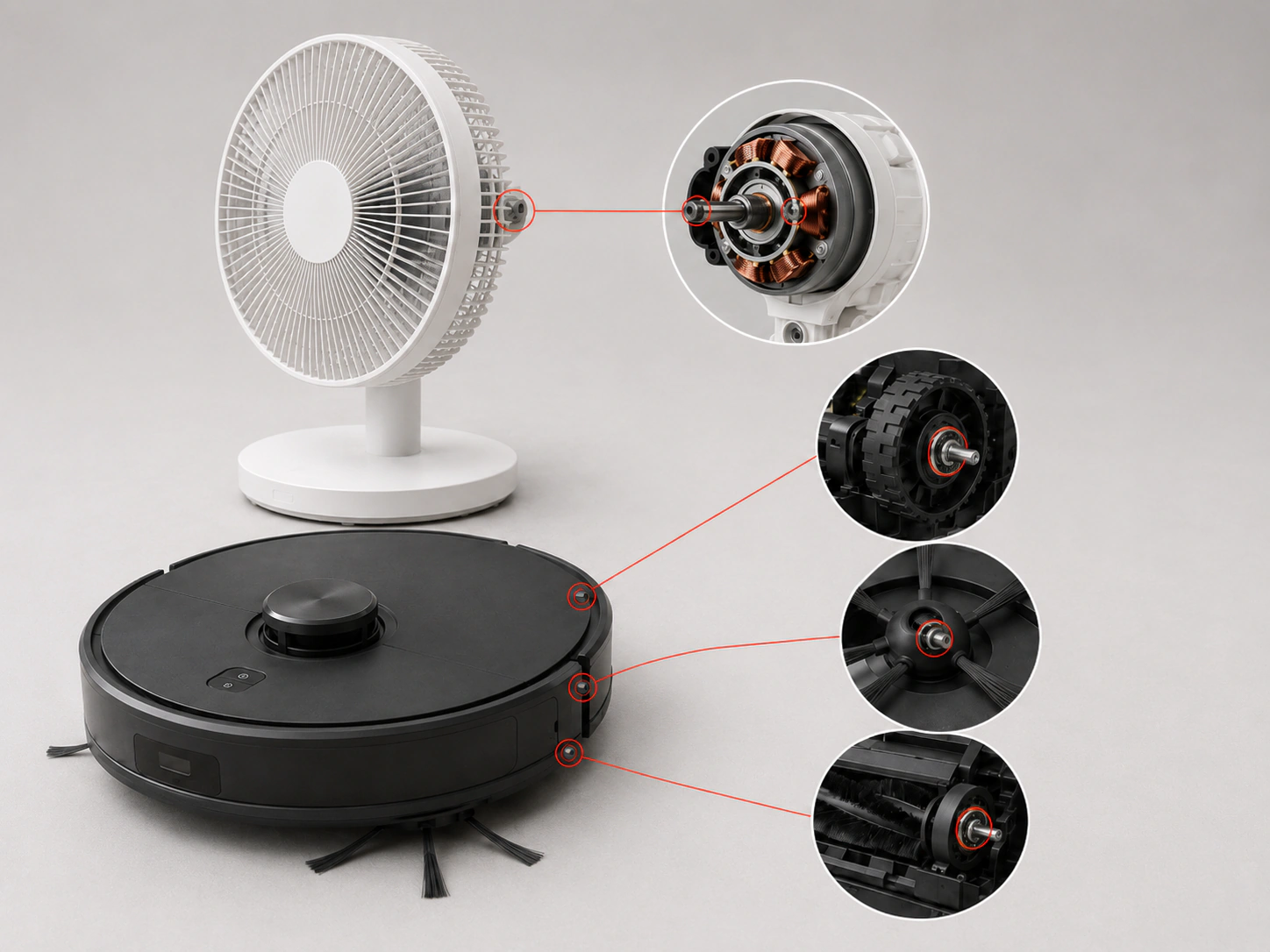

Appliance Drives
Fan, vacuum and appliance motor layouts with restricted installation space.
Application details

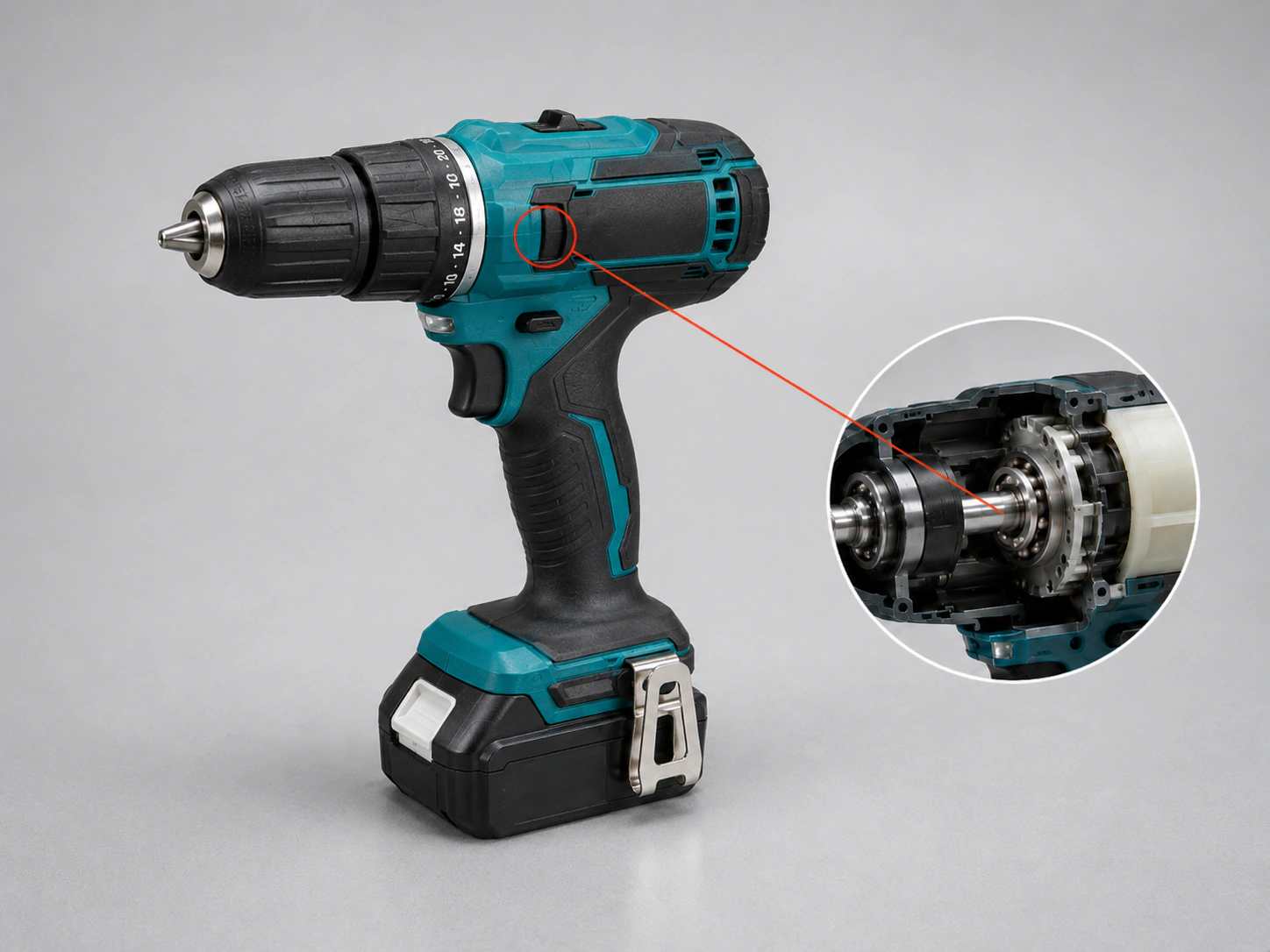

Power Tools
Compact motor and geartrain support subject to speed changes, shock and sealing needs.
Application details

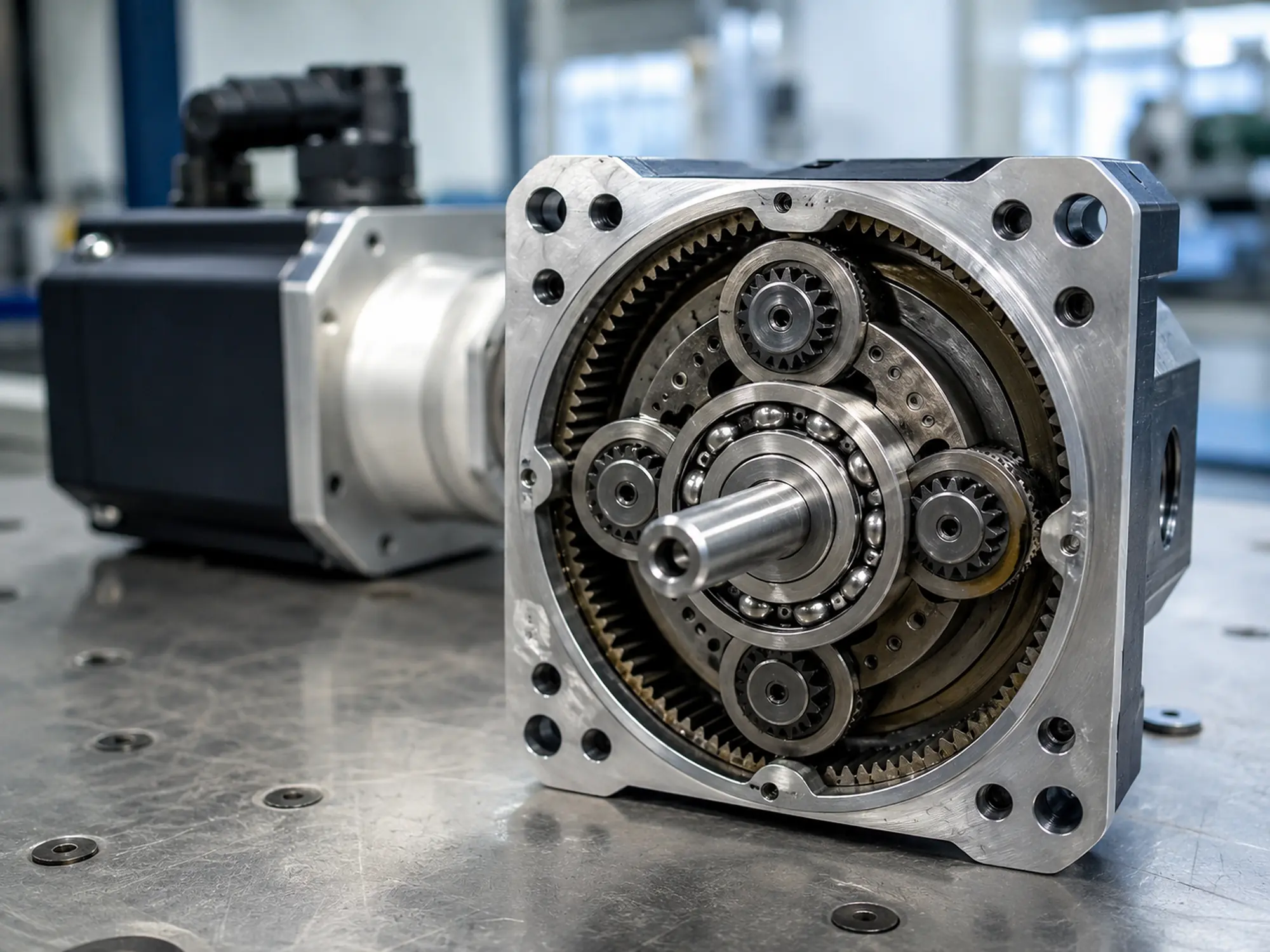

Compact Gearboxes
Shaft support where the gearbox housing limits the available bearing section.
Application details
Conveyors & Light Industrial Equipment
Light-duty rotating assemblies reviewed against the actual load and duty cycle.
Application detailsOEM Support
Send the model and operating conditions so the available configuration, sample scope and supply requirements can be reviewed before production.
Useful information to send
- Model or d × D × B
- Radial and axial load
- Operating and peak speed
- Shaft and housing fits
- Temperature and contamination
- Annual quantity
Envelope check
Confirm shaft diameter, housing bore, available width, shoulders and adjacent components before fixing the series.
Operating-point review
Compare applied load and speed with the catalogue ratings while accounting for fit, temperature and lubrication.
Sample definition
Align the model, closures, material, clearance, grease and inspection points before sample approval.
Drawing confirmation
Request the controlled drawing and final specification through direct project communication.
Quality & Inspection
- Dimensional inspection
- Noise and vibration grading
- Material and process traceability
FAQ
For corresponding bore sizes, the 6000 Series generally uses a smaller outside diameter and a more compact section. The 6200 Series provides a larger section and higher catalogue load ratings where more housing space is available.
Need a compact 6000 Series bearing configuration?
Send the model or installation envelope with load, speed, fit, environment and quantity for a model-level review.
