Balanced series geometry
For corresponding bores in the listed range, the 6200 dimensions fall between the 6000 and 6300 sections.
Standard Deep Groove Ball Bearings · 6200 Series
6200 Series Deep Groove Ball Bearings
The 6200 Series sits between the lighter 6000 and wider 6300 sections in the current LUMI catalogue, making it a practical starting point for many general industrial designs.
Search 6200ZZ through 6208ZZ by model, bore, outside diameter or width and compare the published load and speed data.
Use the table for screening, then confirm the complete configuration against the real load, speed, fit, lubrication, noise and environmental requirements.
10–40 mm bore30–80 mm outer diameter9–18 mm width
Representative models shown- Models
- 9
- Bore
- 10–40 mm
- Outer diameter
- 30–80 mm
- Width
- 9–18 mm
Selection table
Find a Bearing by Model or Dimensions
Model-level dimensions and catalogue ratings from the LUMI selection catalogue.
9 of 9 models
★ Marked as regular-use in the LUMI catalogue| Model | Request | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| ★6200ZZ | 10 | 30 | 9 | 9 | 5110 | 2380 | 25 | 30 | Request This Model |
| ★6201ZZ | 12 | 32 | 10 | 10 | 6180 | 3060 | 22 | 26 | Request This Model |
| ★6202ZZ | 15 | 35 | 11 | 11 | 7450 | 3700 | 19 | 23 | Request This Model |
| ★6203ZZ | 17 | 40 | 12 | 12 | 9560 | 4780 | 18 | 21 | Request This Model |
| ★6204ZZ | 20 | 47 | 14 | 14 | 12840 | 6650 | 16 | 18 | Request This Model |
| 6205ZZ | 25 | 52 | 15 | 15 | 14020 | 7930 | 13 | 15 | Request This Model |
| 6206ZZ | 30 | 62 | 16 | 16 | 19460 | 11310 | 11 | 13 | Request This Model |
| 6207ZZ | 35 | 72 | 17 | 17 | 25670 | 15300 | 10 | 11 | Request This Model |
| 6208ZZ | 40 | 80 | 18 | 18 | 29520 | 18140 | 9 | 10 | Request This Model |
Open and ZZ widths are listed separately where applicable. Limiting speeds are catalogue values in ×1000 rpm; suitable application speed depends on the final bearing configuration and operating conditions.
Need a drawing or additional parameter confirmation? Technical files are supplied through direct project communication.
Request Technical InformationProduct Overview
The 6200 Series is the general-purpose middle section in this three-series comparison, offering a practical balance between installation envelope and catalogue load ratings.
Broad equipment fit
Typical review areas include electric motors, reducers, pumps, fans, appliance drives and general industrial machinery.
Useful baseline for procurement
The series gives buyers a familiar starting point while retaining model-level dimensions, Cr, C0r and speed values in one searchable table.
Specification before release
A general-purpose series still requires confirmation of load direction, fits, clearance, grease, closures, temperature, vibration and duty cycle.
Closure Options
Open Bearing
Lowest closure frictionAn open bearing leaves the raceway accessible and is commonly considered where the surrounding assembly provides protection.
- Lowest sealing friction
- Convenient lubrication access
- Suited to clean, protected environments
Typical applicationsProtected motor housings · Clean mechanisms · Lubrication-accessible assemblies
ZZ / Metal Shields
Low-friction grease retentionNon-contact metal shields help retain grease and reduce entry of larger dust particles while maintaining low running friction.
- Non-contact metal shielding
- Low running friction
- Helps retain grease
Typical applicationsMotors · Fans · Gearboxes · General industrial equipment
RS / 2RS Rubber Seals
Stronger environmental protectionRubber seals provide stronger protection against dust and moisture and generally retain grease more effectively than Open or ZZ designs.
- Stronger dust and moisture protection
- Better grease retention
- Normally higher sealing friction
Typical applicationsContamination-exposed equipment · Appliance drives · Industrial mechanisms
Exact closure availability should be confirmed by model and application requirements. Applicable speed for RS / 2RS designs should be checked for the selected seal configuration.
Materials & Configuration
Dimensions and ratings in the size table apply to the listed models. Confirm material, precision, clearance, lubrication and closure requirements before ordering.
Bearing Steel
GCr15 / AISI 52100The standard choice for load capacity, wear resistance and dimensional stability in clean, lubricated industrial service.
- Standard industrial choice
- High hardness after heat treatment
- Requires corrosion protection
304 Stainless Steel
Austenitic stainlessSelected where corrosion resistance and cleanliness are more important than maximum bearing-steel load capability.
- Good general corrosion resistance
- Suitable for clean or humid environments
- Load and hardness limits require review
420 Stainless Steel
Martensitic stainlessA hardenable stainless option balancing corrosion resistance with bearing contact performance for selected environments.
- Hardenable stainless grade
- Moderate corrosion resistance
- Suitable for selected bearing duties
440 Stainless Steel
High-carbon martensitic stainlessConsidered where higher hardness and wear resistance are required together with improved corrosion resistance over bearing steel.
- High hardness potential
- Good wear resistance
- Material grade and heat treatment must be confirmed
How to choose
Material Selection
Compare the complete operating requirement rather than selecting from corrosion resistance or hardness alone.
- Load and target life
- Corrosion exposure
- Operating temperature
- Lubrication compatibility
- Noise and speed target
- Cost and supply volume
Available models6200ZZ–6208ZZ as individually listed
Selection prioritiesLoad-envelope balance · Speed · Noise · Fit · Lubrication · Duty cycle
Applications
Electric Motors
General motor shaft support reviewed for speed, noise, fit and duty cycle.
Application details
Gearboxes
Reducer and transmission shafts where load support and alignment must be checked together.
Application details

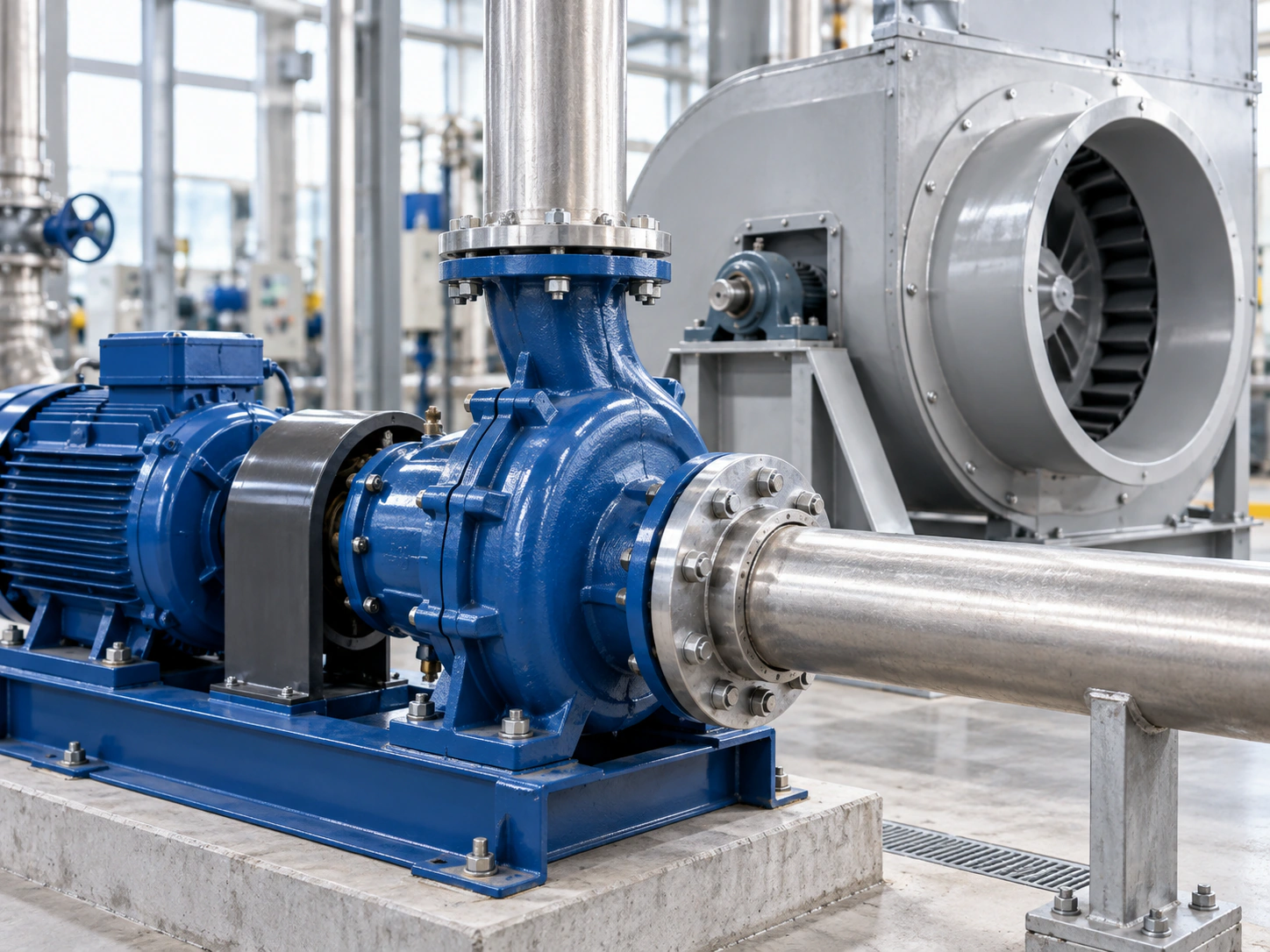

Pumps & Fans
Rotating equipment requiring review of load, speed, sealing, lubrication and service conditions.
Application details

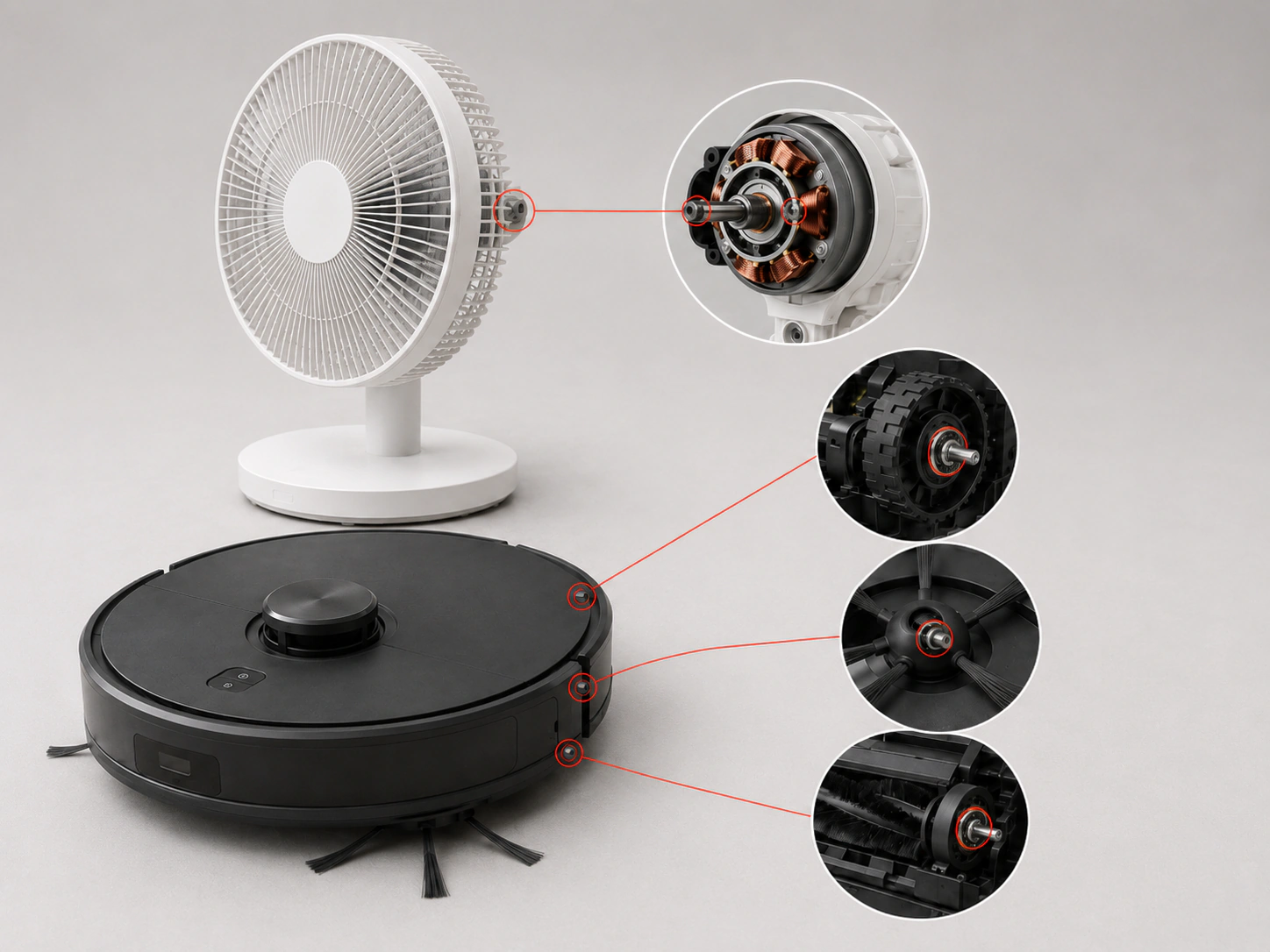

Home Appliances
Fan and appliance drives where noise, grease and assembly fit influence selection.
Application details

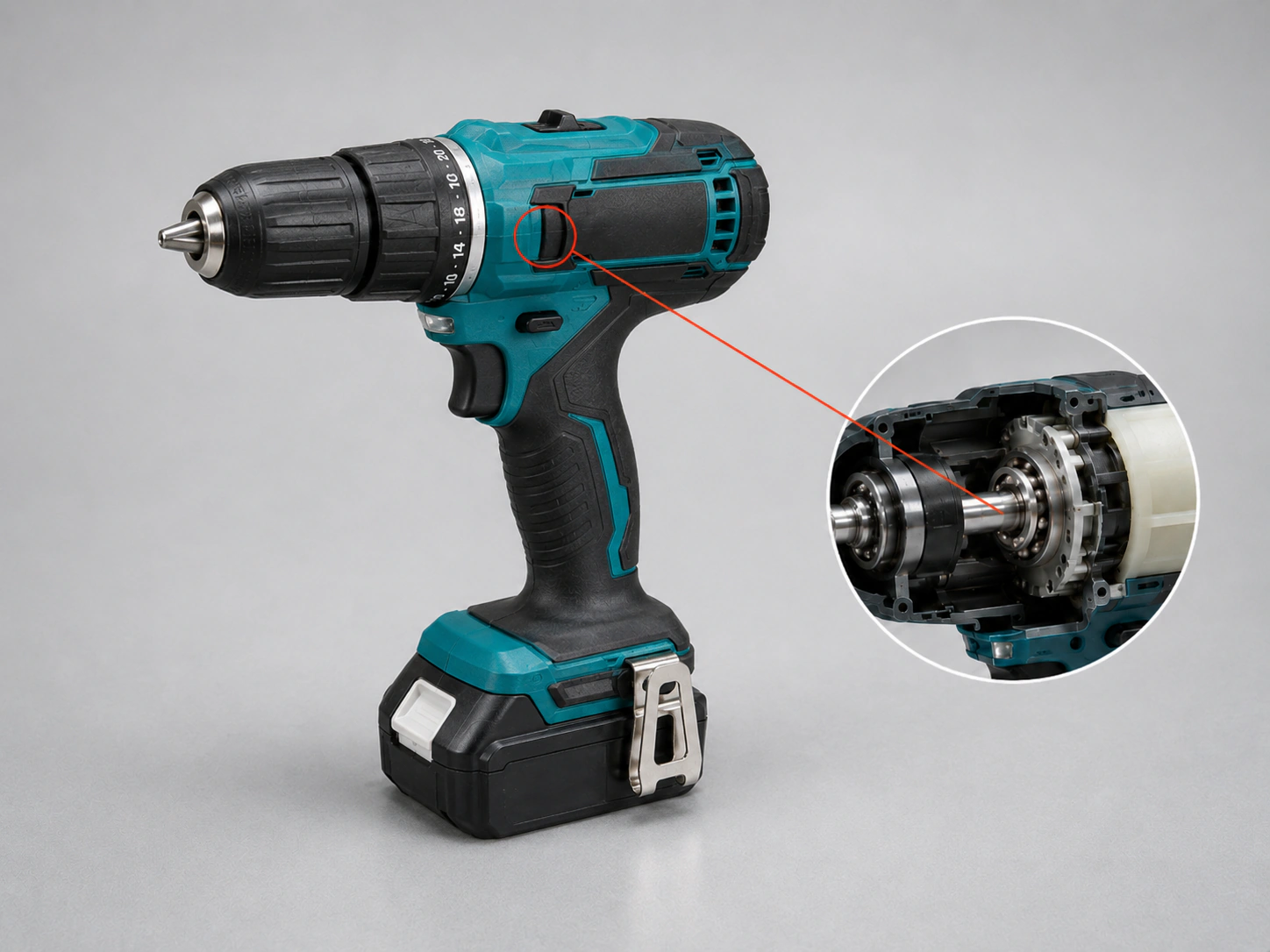

Power Tools
Motor and geartrain support exposed to transient loads and speed changes.
Application details

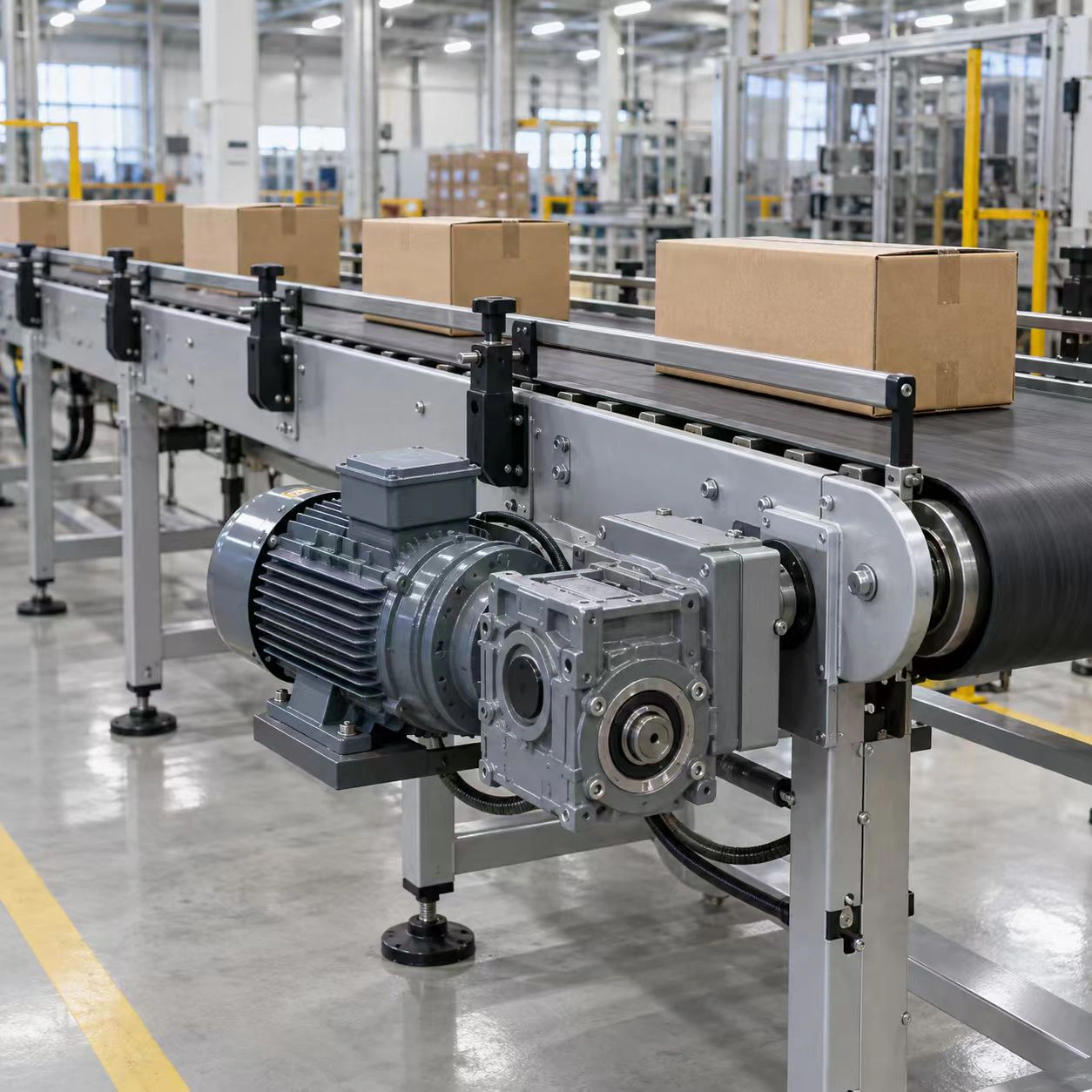

Industrial Machinery
A general-purpose starting series for varied machine duty cycles and installation conditions.
Application detailsOEM Support
Send the model and operating conditions so the available configuration, sample scope and supply requirements can be reviewed before production.
Useful information to send
- Model or d × D × B
- Radial and axial load
- Continuous and peak speed
- Noise or vibration target
- Fits and temperature
- Quantity and validation plan
Series comparison
Compare the 6200 envelope and catalogue ratings with the corresponding 6000 and 6300 options before fixing the housing design.
Load and speed review
Provide applied loads, speed profile and duty cycle rather than selecting from catalogue ratings alone.
Noise and lubrication
Align noise target, grease, fill, closure and validation method for motor, pump or fan applications.
Supply specification
Confirm drawing, material, precision, clearance, inspection and packaging requirements before production.
Quality & Inspection
- Dimensional metrology
- Noise and vibration grading
- Application-specific inspection planning
FAQ
Compare the required load ratings with the available outside diameter and width. The 6200 Series offers a balanced general-purpose envelope, while 6300 uses a wider section and needs more housing space.
Selecting a 6200 Series bearing for production?
Send the model, operating point, fits, environment and volume so the general-purpose baseline can be converted into a controlled project specification.
